3076093

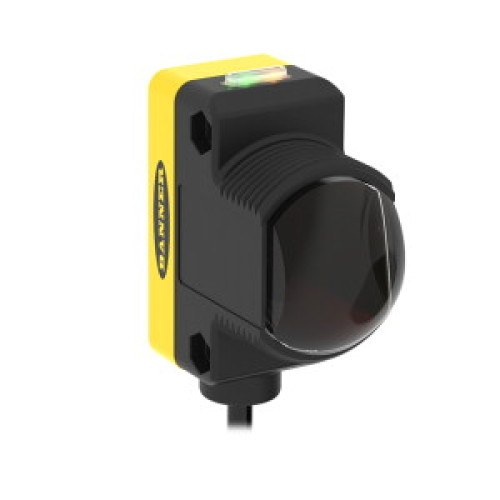

WORLD-BEAM QS30 Expert Diffuse-Mode Visible Red Beam, Range: High-Speed Mode: 1-100, Normal: 1400, Input: 10-30 V dc, Output: Bipo

Manufacturer's No: QS30EDVQPMA8     Manufacturer: Turck Banner
WORLD-BEAM QS30 Expert Diffuse-Mode Visible Red Beam, Range: High-Speed Mode: 1-100, Normal: 1400, Input: 10-30 V dc, Output: Bipolar NPN/PNP

Availability On Request

£219.58
  • Photoelectric Sensor
  • Diffuse Mode Sensor
  • Operating Voltage: 10-30 VDC
  • Max. Range: 1400 mm
  • Cable Length: 0.15 m
  • Cable: Male end M12 x 1, 5-pin, PUR, 150 mm
  • Protection Class: IP67
  • LED all-round visible
  • Teach Button
  • 8-segment Bargraph

Read more

  • Switching Output: Bipolar
  • Light or Dark Operation


Product

Manufacturer Material ID -
QS30EDVQPMA8
Net Weight -
0.09kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

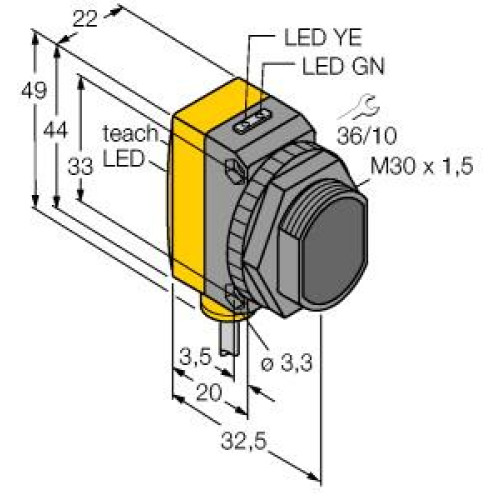

Technical Specification

Ambient temperature -
-10 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Diameter sensor -
30 Millimetre
Height of sensor -
49 Millimetre
Housing material -
Plastic
Length of sensor -
35 Millimetre
Material of cable sheath -
Polyurethane (PUR)
Material of optical surface -
Plastic
Max. switching distance -
1400 Millimetre
Reaction time -
0.3 Millisecond
Type of electric connection -
Connector M12
Type of light -
Infrared light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Wavelength of the sensor -
660 Nanometre
Width sensor -
22 Millimetre
Turck Banner

Availability On Request

£219.58
