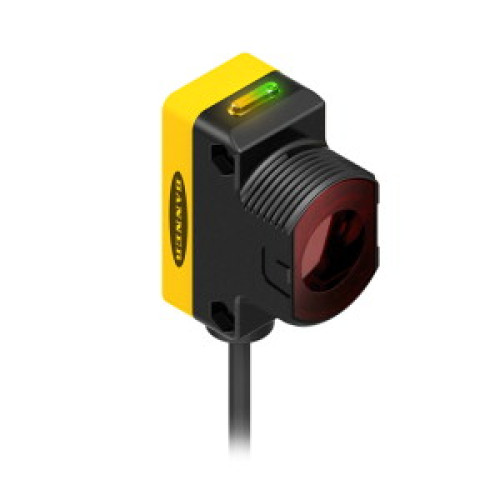

WORLD-BEAM QS30 Series: Emitter, Range: 60 m, Input: 10-30 V dc, Output: Not Applicable, 9 m (30 ft) Cable

Manufacturer's No: QS30E W/30'     Manufacturer: Turck Banner
WORLD-BEAM QS30 Series: Emitter, Range: 60 m, Input: 10-30 V dc, Output: Not Applicable, 9 m (30 ft) Cable

Availability On Request

£98.90
  • Photoelectric sensor in Opposed Mode (Emitter)
  • Operating voltage: 10-30 VDC
  • Maximum range: 60000 mm
  • Cable length: 9 m, PVC material
  • Protection class: IP67
  • LED indicator visible from all angles


Product

Manufacturer Material ID -
QS30E W/30'
Net Weight -
0.25kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Diameter sensor -
30 Millimetre
Height of sensor -
49 Millimetre
Housing material -
Plastic
Length of sensor -
35 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
60000 Millimetre
Rated switching distance -
60000 Millimetre
Reaction time -
5 Millisecond
Type of electric connection -
Cable
Type of light -
Infrared light
Wavelength of the sensor -
875 Nanometre
Width sensor -
22 Millimetre
Turck Banner

Availability On Request

£98.90
