3074870

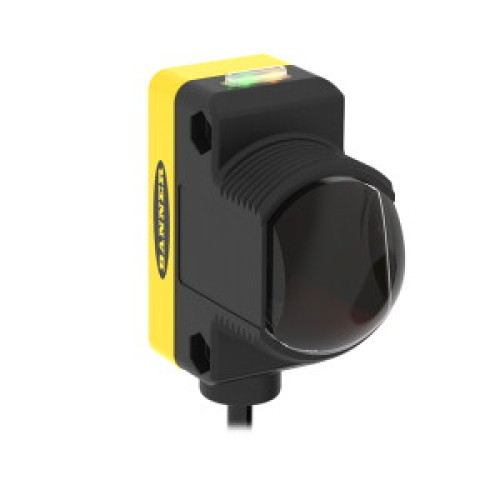

QS30EXQP 150 (6 in) 5-PIN M12 PVC PIGTAIL (CAR WASH)

Manufacturer's No: QS30EXQP     Manufacturer: Turck Banner
QS30EXQP 150 (6 in) 5-PIN M12 PVC PIGTAIL (CAR WASH)

Availability On Request

£182.38
  • Type: Photoelectric Sensor, Opposed Mode Sensor (Emitter)
  • Operating Voltage: 10-30 VDC
  • Max. Range: 213000 mm
  • Cable Length: 0.15 m, Male end
  • Connector: M12 × 1, 5-pin, PVC, 150 mm
  • Protection Class: IP67
  • Features: LED all-round visible, Selectable operating frequency, protection against crosstalk
  • Emitter: LED, switchable


Product

Manufacturer Material ID -
QS30EXQP
Net Weight -
0.09kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

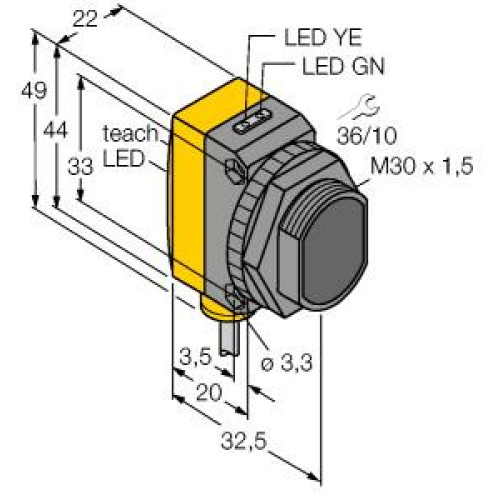

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Diameter sensor -
30 Millimetre
Height of sensor -
49 Millimetre
Housing material -
Plastic
Length of sensor -
35 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
213000 Millimetre
Rated switching distance -
213000 Millimetre
Reaction time -
30 Millisecond
Type of electric connection -
Connector M12
Type of light -
Infrared light
Wavelength of the sensor -
875 Nanometre
Width sensor -
22 Millimetre
