3071964

WORLD-BEAM QS30 Series: High-Powered Emitter, Range: 213 m, Input: 10-30 V dc, Output: Not Applicable, 9 m (30 ft) Cable (CAR WASH

Manufacturer's No: QS30EX W/30     Manufacturer: Turck Banner
WORLD-BEAM QS30 Series: High-Powered Emitter, Range: 213 m, Input: 10-30 V dc, Output: Not Applicable, 9 m (30 ft) Cable (CAR WASH)

Availability On Request

£223.21
  • Type: Photoelectric Sensor, Opposed Mode Sensor (Emitter)
  • Operating Voltage: 10-30 VDC
  • Max. Range: 213,000 mm
  • Cable Length: 9 m, PVC
  • Protection Class: IP67
  • LED all-round visible
  • Selectable operating frequency
  • Protection against crosstalk
  • Emitter LED switchable


Product

Manufacturer Material ID -
QS30EX W/30
Net Weight -
0.27kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

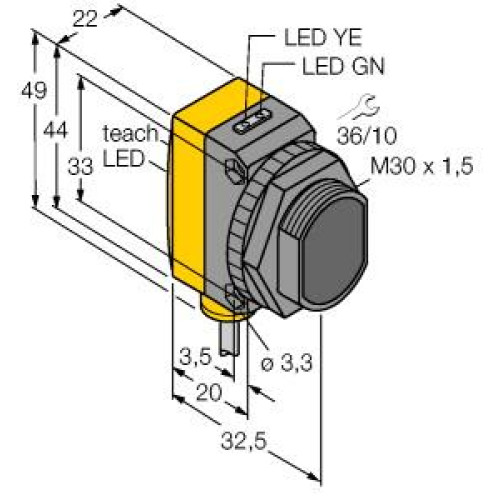

Diameter sensor -
30 Millimetre
Height of sensor -
49 Millimetre
Housing material -
Plastic
Length of sensor -
35 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
213000 Millimetre
Rated switching distance -
213000 Millimetre
Reaction time -
30 Millisecond
Setting procedure -
Other
Type of electric connection -
Cable
Type of light -
Infrared light
Wavelength of the sensor -
875 Nanometre
Width sensor -
22 Millimetre
Turck Banner

Availability On Request

£223.21
