Photoelectric Sensor, Diffuse Mode Sensor with Fixed-Field Background Suppressio

Manufacturer's No: QS30FF400 W/30     Manufacturer: Turck Banner
Photoelectric Sensor, Diffuse Mode Sensor with Fixed-Field Background Suppressio

Availability On Request

£166.27
  • Photoelectric sensor in diffuse mode
  • Features fixed-field background suppression
  • Operating voltage: 10-30 VDC
  • Maximum range: 400 mm
  • Cable length: 9 m, PVC material
  • Protection class: IP67
  • LED indicator visible from all angles
  • Switching output: bipolar
  • Suitable for light or dark operation


Product

Manufacturer Material ID -
QS30FF400 W/30
Net Weight -
0.27kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

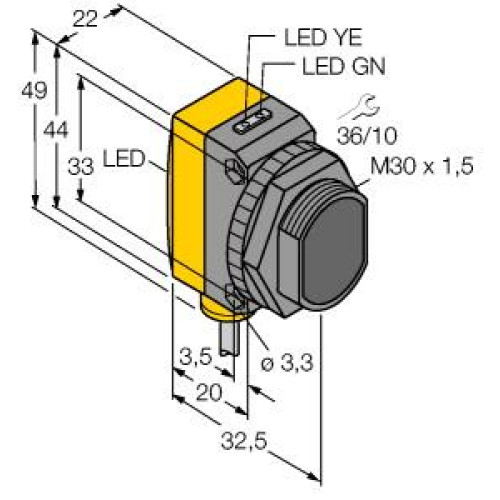

Technical Specification

Adjustment range -
0 Millimetre
Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Diameter sensor -
30 Millimetre
Height of sensor -
49 Millimetre
Housing material -
Plastic
Length of sensor -
35 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
400 Millimetre
Rated switching distance -
400 Millimetre
Reaction time -
2 Millisecond
Switching frequency -
250 Hertz
Type of electric connection -
Cable
Type of light -
Polarity free red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Wavelength of the sensor -
680 Nanometre
Width sensor -
22 Millimetre
Turck Banner

Availability On Request

£166.27
