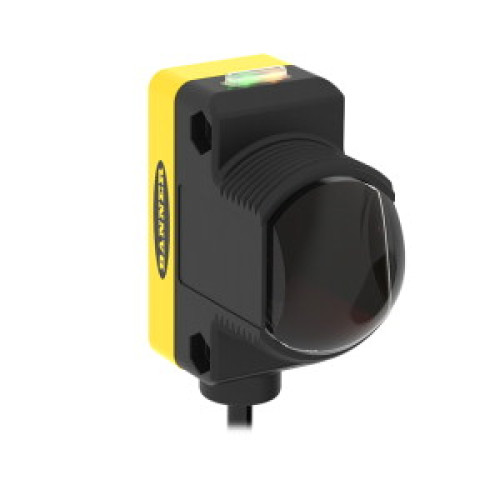

QS30LDLQPMA Class 2 Laser Diffuse, 5-pin M12 PUR Pigtail QD

Manufacturer's No: QS30LDLQPMA     Manufacturer: Turck Banner
QS30LDLQPMA Class 2 Laser Diffuse, 5-pin M12 PUR Pigtail QD

Availability On Request

£316.67
  • Photoelectric sensor in diffuse mode
  • Operating voltage: 10-30 VDC
  • Max. range: 800 mm
  • Cable length: 0.15 m, M12 × 1, 5-pin, PUR, 150 mm
  • Protection class: IP67
  • LED all-round visible
  • Teach button for easy setup
  • 8-segment bargraph display
  • Switching output: bipolar
  • Light or dark operation


Product

Manufacturer Material ID -
QS30LDLQPMA
Net Weight -
0.09kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-10 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Diameter sensor -
30 Millimetre
Height of sensor -
49 Millimetre
Housing material -
Plastic
Laser protection class -
Class 2
Length of sensor -
35 Millimetre
Material of cable sheath -
Polyurethane (PUR)
Material of optical surface -
Plastic
Max. switching distance -
800 Millimetre
Reaction time -
0.5 Millisecond
Switching frequency -
1000 Hertz
Type of electric connection -
Connector M12
Type of light -
Polarity free red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Wavelength of the sensor -
658 Nanometre
Width sensor -
22 Millimetre
