73085 {B}

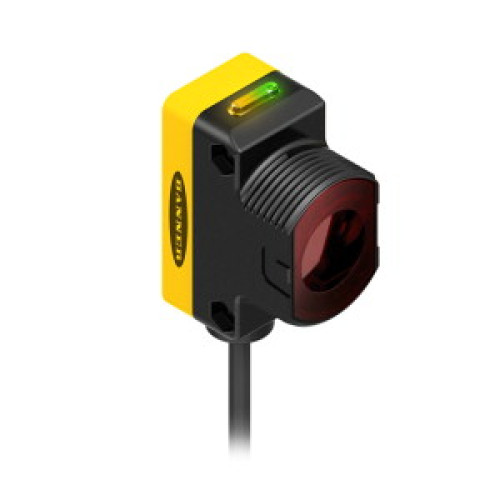

WORLD-BEAM QS30: Polarized Retro, Range: 8 m, Input: 10-30 V dc, Output: Bipolar: 1 NPN, 1 PNP, 150 (6 in) M12 PUR Pigtail QD

Manufacturer's No: QS30LPQPMA     Manufacturer: Turck Banner
WORLD-BEAM QS30: Polarized Retro, Range: 8 m, Input: 10-30 V dc, Output: Bipolar: 1 NPN, 1 PNP, 150 (6 in) M12 PUR Pigtail QD

Availability Available to order

£139.46
  • Photoelectric Sensor: Retroreflective type with Polarizing Filter
  • Operating Voltage: 10 to 30 VDC
  • Maximum Range: 8000 mm
  • Cable Length: 0.15 m, Male end M12 × 1, 5-pin, PUR, 150 mm
  • Protection Class: IP67
  • LED indicator visible from all angles
  • Sensitivity adjustment via potentiometer
  • Switching Output: Bipolar
  • Light or dark operation mode


Product

Manufacturer Material ID -
QS30LPQPMA
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

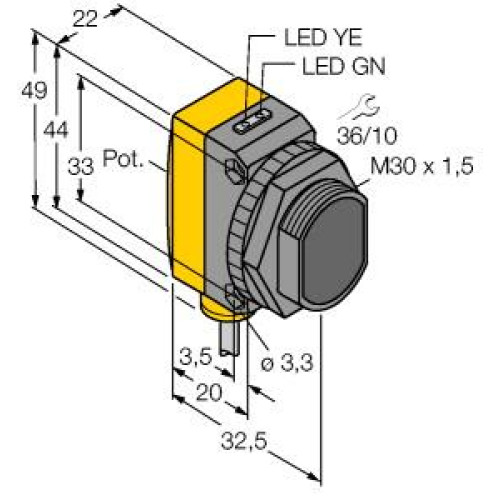

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Diameter sensor -
30 Millimetre
Height of sensor -
49 Millimetre
Housing material -
Plastic
Length of sensor -
35 Millimetre
Material of optical surface -
Plastic
Max. switching distance -
8000 Millimetre
Rated switching distance -
8000 Millimetre
Reaction time -
2 Millisecond
Switching frequency -
250 Hertz
Type of electric connection -
Connector M12
Type of light -
Polarized red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Wavelength of the sensor -
630 Nanometre
Width sensor -
22 Millimetre
