3072547

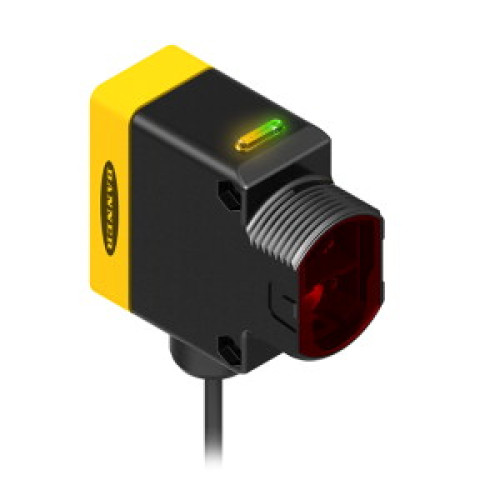

WORLD-BEAM QS30 Series: Universal Voltage, Range: 200, Input: 12-250 V dc or 24-250 V ac, Output: SPDT e/m Relay, 2 m (6.5 ft) Cab

Manufacturer's No: QS30VR3FF200     Manufacturer: Turck Banner
WORLD-BEAM QS30 Series: Universal Voltage, Range: 200, Input: 12-250 V dc or 24-250 V ac, Output: SPDT e/m Relay, 2 m (6.5 ft) Cable

Availability On Request

£148.81
  • Photoelectric sensor in diffuse mode
  • Fixed-field background suppression
  • Operating voltage: 24-250 VAC / 12-250 VDC
  • Maximum range: 200 mm
  • Cable length: 2 m, PVC material
  • Protection class: IP67
  • LED visible from all angles
  • Relay output with changeover functionality


Product

Manufacturer Material ID -
QS30VR3FF200
Net Weight -
0.19kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Adjustment range -
0 Millimetre
Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

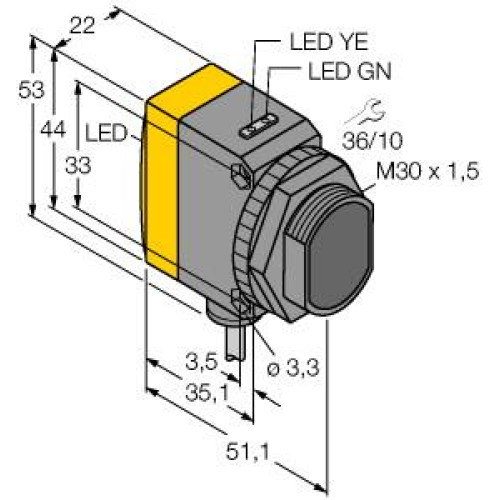

Diameter sensor -
30 Millimetre
Height of sensor -
44 Millimetre
Housing material -
Plastic
Length of sensor -
51.5 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
200 Millimetre
Rated switching distance -
200 Millimetre
Reaction time -
15 Millisecond
Switching frequency -
33 Hertz
Type of electric connection -
Cable
Type of light -
Polarity free red light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
Relay contact
Wavelength of the sensor -
680 Nanometre
Width sensor -
22 Millimetre
Turck Banner

Availability On Request

£148.81
