3073073

QS30, Photoelectric Sensors, IP67, 12-250 V dc 24-250 V ac, Fixed Field, 200 mm

Manufacturer's No: QS30VR3FF200QPMA16     Manufacturer: Turck Banner

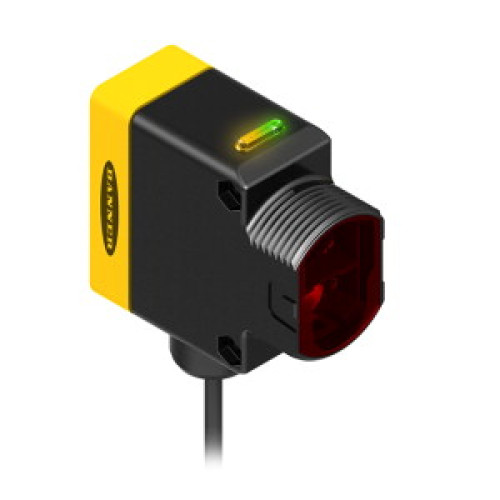

QS30, Photoelectric Sensors, IP67, 12-250 V dc 24-250 V ac, Fixed Field, 200 mm

Availability On Request

£187.82
  • Type: Photoelectric Sensor, Diffuse Mode with Fixed-Field Background Suppression
  • Operating Voltage: 24-250 VAC / 12-250 VDC
  • Maximum Range: 200 mm
  • Cable Length: 0.15 m, 5-pin male end M12 × 1, PUR, 150 mm
  • Protection Class: IP67
  • LED Indicator: All-round visible
  • Output: Relay, Changeover
  • Dual Operating Voltage: 12-250 VDC or 24-250 VAC


Product

Manufacturer Material ID -
QS30VR3FF200QPMA16
Net Weight -
0.11kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Adjustment range -
0 Millimetre
Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

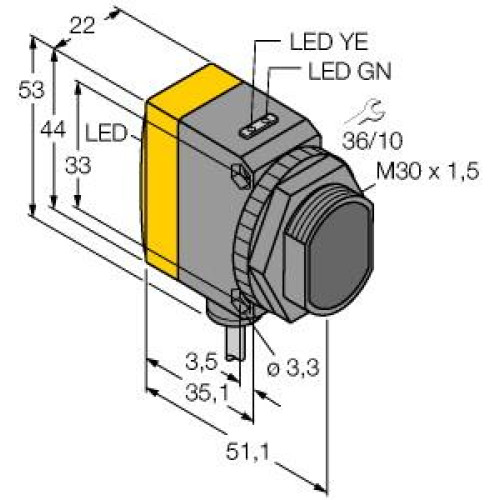

Diameter sensor -
30 Millimetre
Height of sensor -
44 Millimetre
Housing material -
Plastic
Length of sensor -
51.5 Millimetre
Material of cable sheath -
Polyurethane (PUR)
Material of optical surface -
Plastic
Max. switching distance -
200 Millimetre
Rated switching distance -
200 Millimetre
Reaction time -
15 Millisecond
Switching frequency -
250 Hertz
Type of electric connection -
Connector 1/2 inch
Type of light -
Polarity free red light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
Relay contact
Wavelength of the sensor -
680 Nanometre
Width sensor -
22 Millimetre
Turck Banner

Availability On Request

£187.82
