WORLD-BEAM QS30 Series: Universal Voltage, Range: 8 m, Input: 12-250 V dc or 24-250 V ac, Output: SPDT e/m Relay, 9 m (30 ft) Cabl

Manufacturer's No: QS30VR3LP W/30     Manufacturer: Turck Banner

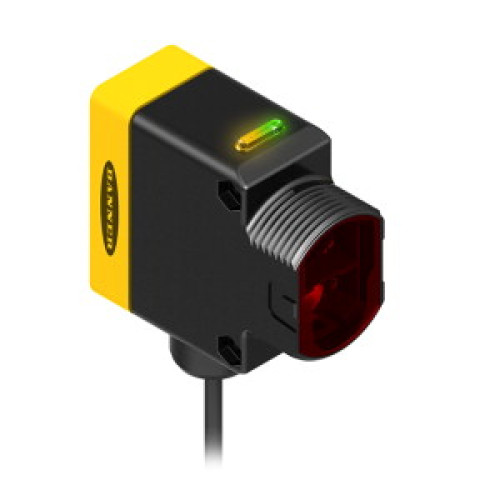

WORLD-BEAM QS30 Series: Universal Voltage, Range: 8 m, Input: 12-250 V dc or 24-250 V ac, Output: SPDT e/m Relay, 9 m (30 ft) Cable

Availability On Request

£177.84
  • Photoelectric sensor with retroreflective design and polarizing filter
  • Operating voltage: 24-250 VAC / 12-250 VDC
  • Maximum range: 8000 mm
  • Cable length: 9 m, made of PVC
  • Protection class: IP67
  • LED indicator visible from all angles
  • Sensitivity adjustment via potentiometer
  • Relay output with changeover functionality


Product

Manufacturer Material ID -
QS30VR3LP W/30
Net Weight -
0.67kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

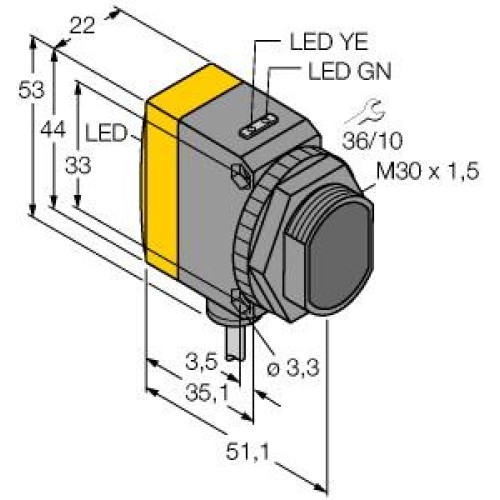

Diameter sensor -
30 Millimetre
Height of sensor -
44 Millimetre
Housing material -
Plastic
Length of sensor -
51.5 Millimetre
Material of optical surface -
Plastic
Max. switching distance -
8000 Millimetre
Rated switching distance -
8000 Millimetre
Reaction time -
15 Millisecond
Switching frequency -
250 Hertz
Type of electric connection -
Cable
Type of light -
Polarized red light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
Relay contact
Wavelength of the sensor -
630 Nanometre
Width sensor -
22 Millimetre
