02724 {B}

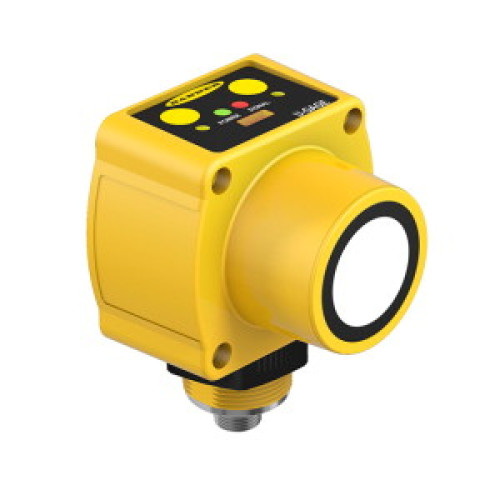

QT50U Dual-Discrete Series: Proximity Mode, Range: 200 - 8 m, Input: 10-30 V dc, Outputs: 2 Discrete NPN or PNP, 5-pin M12 Integra

Manufacturer's No: QT50UDBQ6     Manufacturer: Turck Banner
QT50U Dual-Discrete Series: Proximity Mode, Range: 200 - 8 m, Input: 10-30 V dc, Outputs: 2 Discrete NPN or PNP, 5-pin M12 Integral QD

Availability Available to order

£794.85
  • Ultrasonic sensor with diffuse mode
  • Operating voltage: 10-30 VDC
  • Max. range: 8000 mm
  • LED indicator for signal intensity
  • Male connector: 5-pin, M12 x 1
  • Temperature compensation selectable via DIP switch
  • Two switching ranges, separately adjustable via teach-in
  • Pump function adjustable via DIP switch
  • Blind zone: 20 cm
  • Range: 800 cm


Product

Manufacturer Material ID -
QT50UDBQ6
Net Weight -
0.47kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

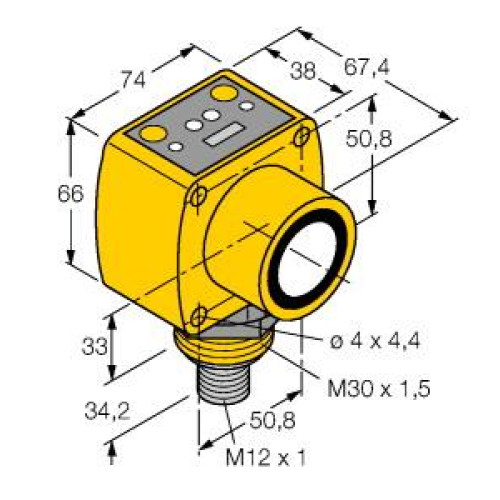

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Height of sensor -
100.2 Millimetre
Housing material -
Plastic
Length of sensor -
67.4 Millimetre
Material active area of sensor -
Plastic
Material of cable sheath -
Polyvinyl chloride (PVC)
Measuring range length -
200 Millimetre
Supply voltage -
10 Volt
Switching frequency -
5 Hertz
Type of electric connection -
Plug-in connection
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP
Width sensor -
74 Millimetre
Turck Banner

Availability Available to order

£794.85
