3072477

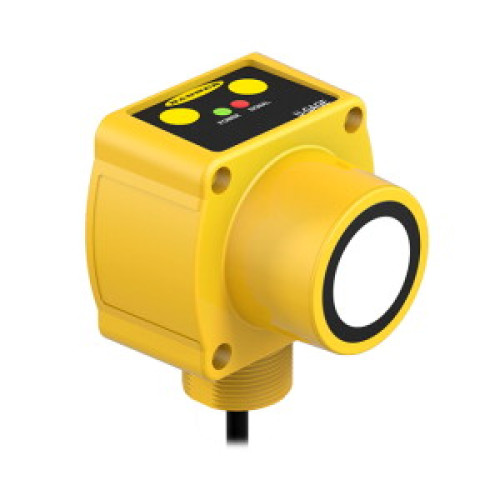

QT50U Universal Voltage Series: Proximity Mode, Range: 200/8 m, Input: 85-264 V ac 50/60 Hz/48 to 250 V dc, Output: SPDT electrome

Manufacturer's No: QT50UVR3W     Manufacturer: Turck Banner
QT50U Universal Voltage Series: Proximity Mode, Range: 200/8 m, Input: 85-264 V ac 50/60 Hz/48 to 250 V dc, Output: SPDT electromechanical relay, 2 m (6.5 ft) Cable

Availability On Request

£785.77
  • Ultrasonic sensor with diffuse mode
  • Operating voltage: 85-265 VAC
  • Max. range: 8000 mm
  • Cable length: 2 m, PVC, 5-wire
  • LED indicator for signal intensity
  • Temperature compensation selectable via DIP switch
  • Blind zone: 20 cm
  • Range: 800 cm


Product

Manufacturer Material ID -
QT50UVR3W
Net Weight -
0.55kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
US
UNSPSC -
39122216

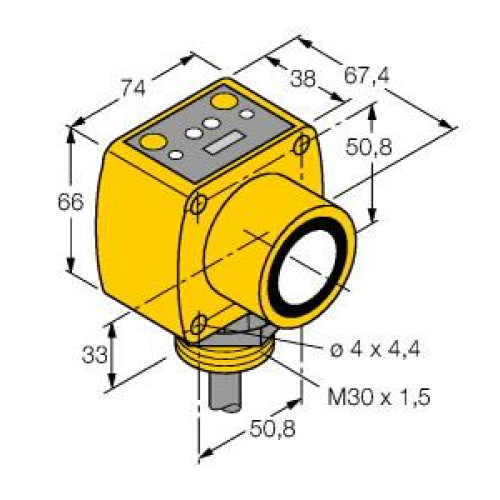

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Height of sensor -
84.2 Millimetre
Housing material -
Plastic
Length of sensor -
67.4 Millimetre
Material active area of sensor -
Plastic
Material of cable sheath -
Polyvinyl chloride (PVC)
Measuring range length -
200 Millimetre
Supply voltage -
85 Volt
Switching frequency -
5 Hertz
Type of electric connection -
Cable
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP
Width sensor -
74 Millimetre
Turck Banner

Availability On Request

£785.77
