3058024

R55 Color Mark: Plastic Fiber w/ Blue LED, Range: Depends on Fiber, Input: 10-30 V dc, Outputs: Bipolar NPN/PNP, 2 m (6.5 ft) Cabl

Manufacturer's No: R55FPB     Manufacturer: Turck Banner
R55 Color Mark: Plastic Fiber w/ Blue LED, Range: Depends on Fiber, Input: 10-30 V dc, Outputs: Bipolar NPN/PNP, 2 m (6.5 ft) Cable

Availability On Request

£250.43
  • Photoelectric sensor for plastic fibers
  • Operating voltage: 10-30 VDC
  • Cable length: 2 meters, PVC material
  • 5-wire cable with protection class IP67
  • Teach button and 10-segment bargraph
  • Switch-off delay options: no delay, 20 ms, 40 ms
  • Blue emitter LED for light or dark operation
  • Switching output: bipolar


Product

Manufacturer Material ID -
R55FPB
Net Weight -
0.22kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-10 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

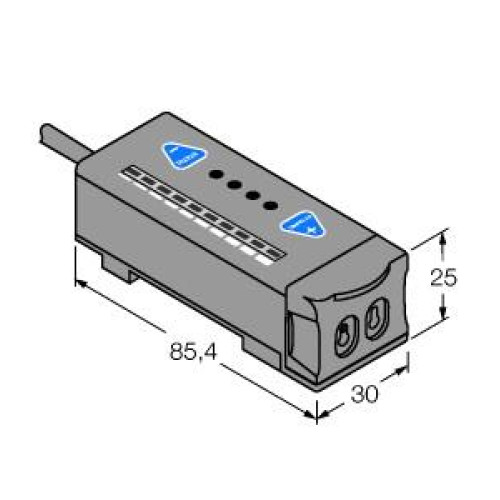

Height amplifier -
25 Millimetre
Housing material -
Plastic
Length amplifier -
85.4 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
No load current -
70 Milliampere
Type of electric connection -
Cable
Type of light -
Blue light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Width amplifier -
30 Millimetre
Turck Banner

Availability On Request

£250.43
