3058026

R55 Color Mark: Plastic Fiber w/ Blue LED, Range: Depends on Fiber, Input: 10-30 V dc, Outputs: Bipolar NPN/PNP, 5-pin M12 Integra

Manufacturer's No: R55FPBQ     Manufacturer: Turck Banner
R55 Color Mark: Plastic Fiber w/ Blue LED, Range: Depends on Fiber, Input: 10-30 V dc, Outputs: Bipolar NPN/PNP, 5-pin M12 Integral QD

Availability On Request

£250.43
  • Photoelectric Sensor for Plastic Fibers
  • Operating Voltage: 10-30 VDC
  • Male M12 x 1, 5-pin
  • Protection Class: IP67
  • Teach Button
  • 10-Segment Bargraph
  • Switch-off Delay Options: No delay, 20 ms, 40 ms
  • Blue Emitter LED
  • Switching Output: Bipolar
  • Light or Dark Operation


Product

Manufacturer Material ID -
R55FPBQ
Net Weight -
0.12kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-10 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

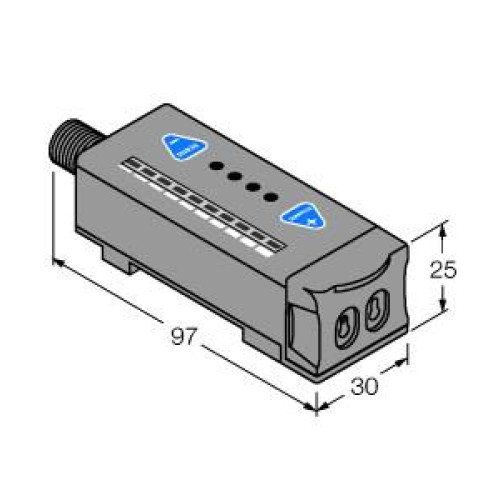

Height amplifier -
25 Millimetre
Housing material -
Plastic
Length amplifier -
97 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
No load current -
70 Milliampere
Type of electric connection -
Connector M12
Type of light -
Blue light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Width amplifier -
30 Millimetre
Turck Banner

Availability On Request

£250.43
