63002062

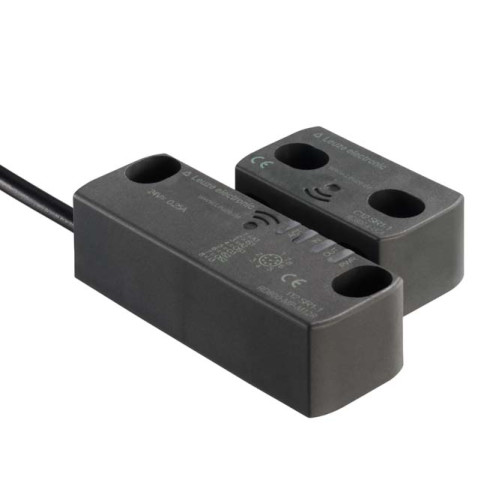

The Safety transponder from . Application: Individual use, Series use; Code type: Standard code; SIL: Up to 3, IEC 61508; Performa

Manufacturer's No: RD800-MSCA-CB2-L     Manufacturer: Leuze
The Safety transponder from . Application: Individual use, Series use; Code type: Standard code; SIL: Up to 3, IEC 61508; Performance Level (PL): Up to and including e, EN ISO 13849-1; Category: Up

Availability Back Order

£216.00
  • Application: Individual use, Series use
  • Code Type: Standard code
  • SIL: Up to SIL 3, IEC 61508
  • Performance Level (PL): Up to PL e, EN ISO 13849-1
  • Category: Up to Category 4, EN ISO 13849
  • Connection: Cable, 8-wire, 2,000 mm length, PVC
  • Connector: Located on the left side
  • Dimensions: 25 mm x 18 mm x 72 mm
  • Assured Cut-out Distance (Sar), min.: 16 mm
  • Assured Cut-in Distance (Sao), max.: 10 mm

Read more

  • Certifications: c UL US, TÜV Süd

Accessories

Others



Product

Manufacturer Material ID -
RD800-MSCA-CB2-L
Net Weight -
0.25kg

Additional Product Information

Commodity Code -
85369095
Country of Origin -
IT
UNSPSC -
39122200

Technical Specification

Material -
UN
Mandrel size -
- Millimetre
Length of connection cable -
- Metre
Degree of protection (IP) -
UN
VdS class -
UN
Thumbnail of product picture -
Ambient temperature during operating -
-25 Degrees celsius
Cam distance -
10 Millimetre
Coating housing -
Other
Degree of protection (IP rating) -
IP67
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height of sensor -
18 Millimetre
Housing material -
Plastic
Interface type -
None
Length of sensor -
72 Millimetre
Number of safety auxiliary contacts -
2
Rated operation current Ie at AC-15, 125 V -
0.25 Ampere
Rated operation current Ie at AC-15, 230 V -
0.25 Ampere
Rated operation current Ie at AC-15, 24 V -
0.25 Ampere
Rated operation current Ie at DC-13, 125 V -
0.25 Ampere
Rated operation current Ie at DC-13, 230 V -
0.25 Ampere
Rated operation current Ie at DC-13, 24 V -
0.25 Ampere
Suitable for safety functions -
Type of control element -
Other
Type of electric connection -
With cable preassembled
Type of interface for safety communication -
None
Type of switching contact -
Other
Width sensor -
25 Millimetre
Leuze

Availability Back Order

£216.00
