Incremental Encoder, Industrial Line

Manufacturer's No: RI-10S10C-2B2048-H1181     Manufacturer: Turck Banner

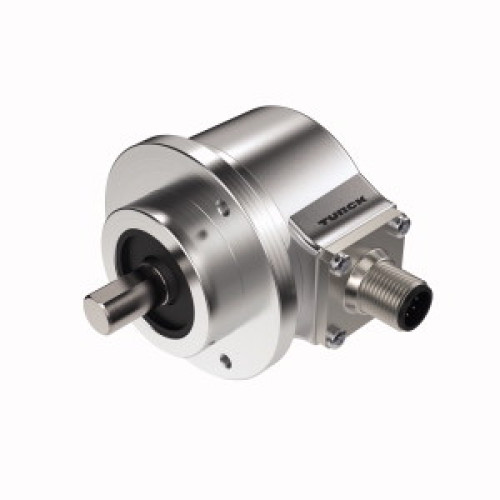

Incremental Encoder, Industrial Line

Availability On Request

£485.66
  • Incremental Encoder from the Industrial Line
  • Operating voltage: 10-30 VDC
  • Resolution: 2048 pulses per revolution
  • Clamping flange with a diameter of 58 mm
  • Solid shaft made of stainless steel with a diameter of 10 mm and length of 20 mm
  • Optical measuring principle
  • Protection class IP67 for housing and shaft side
  • Operating temperature range: -40 to +85 °C
  • Maximum speed: 6000 rpm (continuous operation at 3000 rpm)
  • Output: Push-pull/HTL invertible

Read more

  • Pulse frequency: max. 300 kHz
  • Connector: M12 x 1 male connector with 8 pins


Product

Manufacturer Material ID -
RI-10S10C-2B2048-H1181
Net Weight -
0.37kg

Additional Product Information

Commodity Code -
90318020000
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Degree of protection (IP rating) -
IP67
Diameter axle -
10 Millimetre
Housing material -
Other
Impulse rate per cycle -
2048
Max. pulses per revolution -
300
Model -
Incremental encoder
Physical measurement principle -
Optic
Standard for interfaces -
Other
Type of electric connection -
Plug-in connection
Turck Banner

Availability On Request

£485.66
