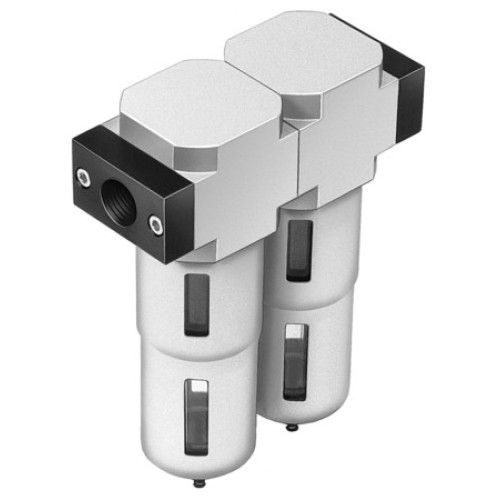

LFMBA-1/4-D-MIDI-A Filter combination

Manufacturer's No: LFMBA-1/4-D-MIDI-A     Manufacturer: Festo
LFMBA-1/4-D-MIDI-A Filter combination

Availability Available to order

£461.76
  • Filter combination LFMBA-1/4-D-MIDI-A
  • Micro filter 1 µm for prefiltration and micro filter 0.01 µm
  • Metal bowl guard
  • Size: Midi
  • Series: D
  • Grade of filtration: 0.01 µm
  • Filter efficiency: 99.9999%
  • Condensate drain: Fully automatic
  • Design: Fibre filter
  • Max. condensate volume: 43 mL

Read more

  • Bowl guard: Metal bowl guard
  • Operating pressure: 1.5 bar to 12 bar
  • Operating medium: Compressed air to ISO 8573-1:2010 [6:8:4], Inert gases
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Air purity class at output: Compressed air to ISO 8573-1:2010 [1:7:2], Inert gases
  • Media temperature: 1.5°C to 60°C
  • Residual oil content: 0.01 mg/m³
  • Ambient temperature: -10°C to 60°C
  • Product weight: 1300 g
  • Type of mounting: In-line installation with accessories
  • Pneumatic connection, port 1 & 2: G1/4
  • Material filter: Borosilicate fibre
  • Material housing: Die-cast zinc
  • Material bowl: PC
  • RoHS-compliant materials


Product

Manufacturer Material ID -
LFMBA-1/4-D-MIDI-A
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84213925
Country of Origin -
HU
UNSPSC -
41111926

Technical Specification

Max. output current -
- Milliampere
Ambient temperature -
- Degrees celsius
Switching frequency -
- Hertz
Number of semiconductor outputs with signalling function -
-
Number of contact energized outputs with signalling function -
-
Number of protected semiconductor outputs -
-
Number of protected contact energized outputs -
-
Type of interface for safety communication -
UN
Type of switch function -
UN
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Operation agent-safety class -
UN
Setting procedure -
UN
Explosion safety category for gas -
UN
Explosion safety category for dust -
UN
Laser protection class -
UN
Light dot -
- Square millimetre
Max. output current at protected output -
- Milliampere
Min. reflector distance -
- Millimetre
Time of reaction -
- Millisecond
Transmission range of the safety field -
- Metre
Switching voltage of OSSD at state "high" -
- Volt
Type of safety acc. IEC 61496-1 -
UN
Degree of protection (IP) -
UN
Diameter sensor -
- Millimetre
Sensing mode -
UN
Rated switching distance -
- Millimetre
Degree of protection (NEMA) -
UN
Material housing -
Plastic
Construction type housing -
Cuboid
Height of sensor -
62 Millimetre
Housing material -
Plastic
Length of sensor -
35 Millimetre
Material of optical surface -
Plastic
Max. switching distance -
12000 Millimetre
Type of electric connection -
Cable
Type of light -
Polarized red light
Type of switching output -
PNP/NPN
Voltage type -
DC
Wavelength of the sensor -
630 Nanometre
Width sensor -
18 Millimetre
