Industrial Ethernet/PROFINET Cable, Extension Cable

Manufacturer's No: RSSD-RJ45S-4416-0.5M     Manufacturer: Turck Banner
Industrial Ethernet/PROFINET Cable, Extension Cable

Availability On Request

POA

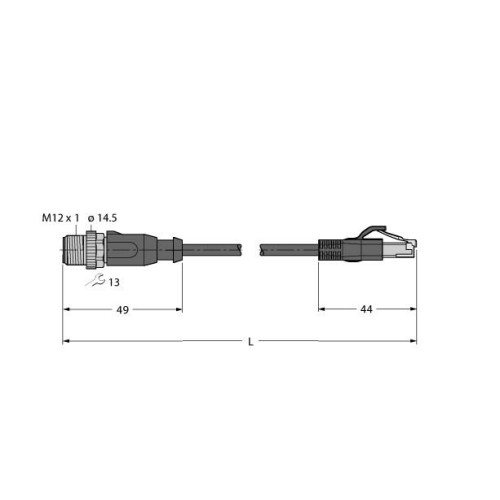

  • Industrial Ethernet/PROFINET Extension Cable
  • Cable Length: 0.5 m
  • M12 Male Connector, straight, D-coded
  • RJ45 Male Connector, straight, 4-pin
  • Ethernet Cable: 4-pin, AWG 22, CAT 5E
  • Jacket Material: PUR, Jacket Color: Green
  • Shielding: Overlapping aluminum foil, tinned copper wire
  • Jacket Diameter: 6.5 mm
  • Suitable for drag chain use
  • Oil resistant (IEC 60811-2-1, UL13)

Read more

  • Halogen free (IEC 60754)
  • Flame retardant (IEC 60332-1-2, UL2556 VW1)
  • Approval: UL, RoHS compliant, PNO compliant


Product

Manufacturer Material ID -
RSSD-RJ45S-4416-0.5M
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85444290900
Country of Origin -
CZ
UNSPSC -
39121402

Technical Specification

Ambient temperature -
-50 Degrees celsius
Contact type -
Pin
Degree of protection (IP), mounted -
IP67
Housing material -
Plastic
Material of contact surface -
Gold
Pollution degree -
3
Rated current In -
3 Ampere
Type of housing -
Straight
Turck Banner

Availability On Request

POA
