1610010

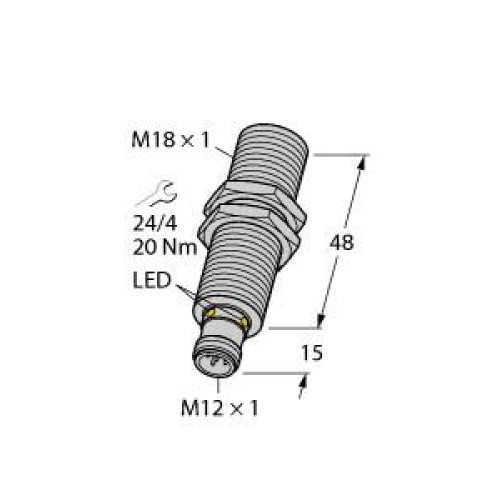

Ultrasonic Sensor, Diffuse Mode Sensor

Manufacturer's No: RU100U-M18M-UP8X2-H1151     Manufacturer: Turck Banner
Ultrasonic Sensor, Diffuse Mode Sensor

Availability On Request

£180.19
  • Type: Ultrasonic Sensor, Diffuse Mode
  • Operating Voltage: 15-30 VDC
  • Max. Range: 1000 mm
  • Smooth sonic transducer face
  • Cylindrical housing M18, potted
  • Connection: M12 x 1 male
  • Temperature Compensation
  • Blind Zone: 15 cm
  • Range: 100 cm
  • Resolution: 1 mm

Read more

  • Aperture Angle of Sonic Cone: ±16°
  • Output: 1 x switching output, PNP
  • Teachable Settings
  • NO/NC Programmable


Product

Manufacturer Material ID -
RU100U-M18M-UP8X2-H1151
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-25 Degrees celsius
Construction type housing -
Cylinder, screw-thread
Diameter sensor -
18 Millimetre
Housing material -
Other
Length of sensor -
63 Millimetre
Material active area of sensor -
Plastic
Measuring range length -
150 Millimetre
No load current -
50 Milliampere
Relative linearity deflection -
0.5 Percentage
Relative repeat accuracy -
0.15 Percentage
Setting procedure -
Other
Supply voltage -
15 Volt
Switching frequency -
6.9 Hertz
Type of electric connection -
Plug-in connection
Type of switch function -
Programmable/configurable
Type of switching output -
PNP
