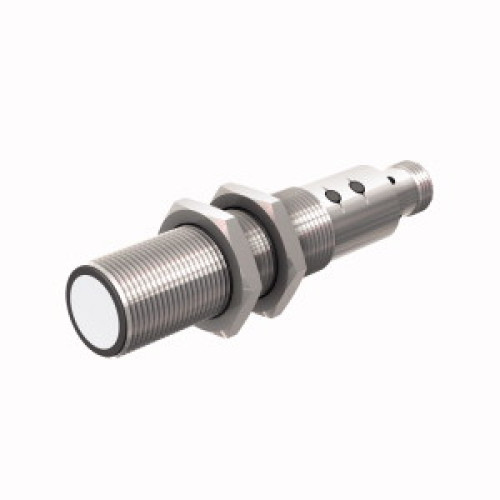

Ultrasonic Sensor, Diffuse Mode Sensor

Manufacturer's No: RU130U-EM18E-LIU2PN8X2T-H1151/3GD     Manufacturer: Turck Banner
Ultrasonic Sensor, Diffuse Mode Sensor

Availability On Request

£475.95
  • Type: Ultrasonic Sensor, Diffuse Mode Sensor
  • Operating Voltage: 15-30 VDC
  • Max. Range: 1300 mm
  • Smooth sonic transducer face

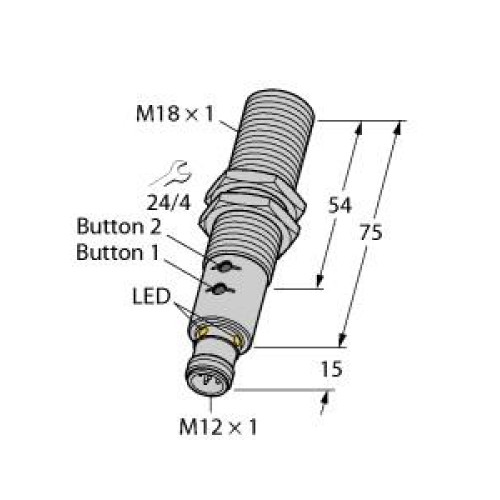

  • Housing: Cylindrical M18, potted
  • Connection: M12 x 1 male
  • Teach range adjustable via pushbutton or adapter
  • Temperature compensation
  • Blind Zone: 15 cm
  • Range: 130 cm

Read more

  • Resolution: 1 mm
  • Aperture Angle of Sonic Cone: ±16°
  • Outputs: 1 x switching output (PNP/NPN), 1 x analog output (4-20 mA / 0-10 V) with additional switching output (PNP/NPN, NO/NC programmable)
  • IO-Link for transmission of process value and parameterization
  • ATEX II 3 G approval for gases, vapors (Group IIC, Zone 2) and dust (Group IIIC, Zone 22)
  • Safety: SC-M12/3GD safety clips included to prevent inadvertent disconnection of energized cable


Product

Manufacturer Material ID -
RU130U-EM18E-LIU2PN8X2T-H1151/3GD
Net Weight -
0.09kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-25 Degrees celsius
Construction type housing -
Cylinder, screw-thread
Diameter sensor -
18 Millimetre
Explosion safety category for dust -
ATEX dust-ex-protection, Cat. 3D
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Housing material -
Stainless steel
Length of sensor -
90 Millimetre
Material active area of sensor -
Plastic
Measuring range length -
150 Millimetre
No load current -
50 Milliampere
Relative linearity deflection -
0.5 Percentage
Relative repeat accuracy -
0.15 Percentage
Setting procedure -
Manual adjustment
Standard for interfaces -
Other
Supply voltage -
15 Volt
Switching frequency -
6.9 Hertz
Type of analogy output -
4 mA ... 20 mA
Type of electric connection -
Plug-in connection
Type of switch function -
Programmable/configurable
Type of switching output -
PNP/NPN
