1610073

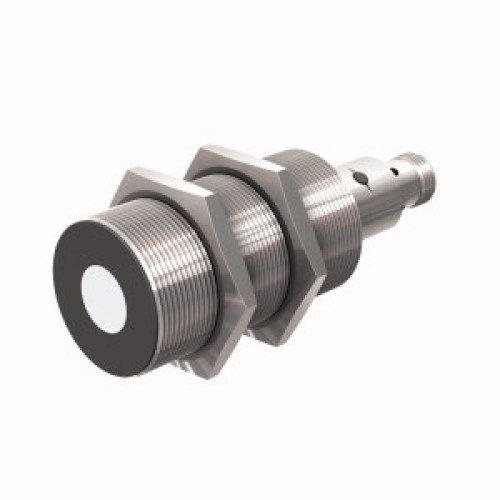

Ultrasonic Sensor, Diffuse Mode Sensor

Manufacturer's No: RU130U-EM30E-LIU2PN8X2T-H1151/3GD     Manufacturer: Turck Banner
Ultrasonic Sensor, Diffuse Mode Sensor

Availability On Request

£715.84
  • Ultrasonic Sensor
  • Diffuse Mode Sensor
  • Operating voltage: 15-30 VDC
  • Max. range: 1300 mm
  • Smooth sonic transducer face

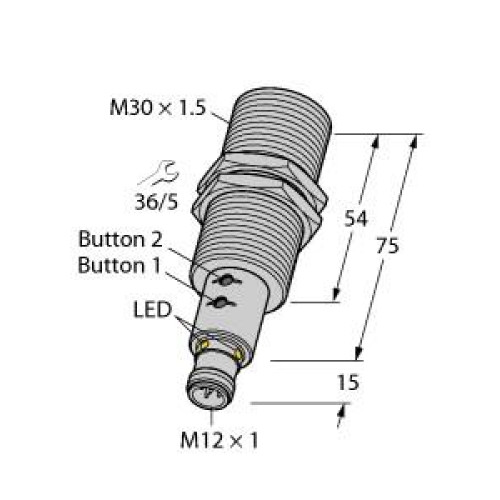

  • Cylindrical housing M30, potted
  • Connection: M12 x 1 male
  • Measuring range adjustable via teach button/Easy-Teach
  • Temperature compensation
  • Blind zone: 15 cm

Read more

  • Range: 130 cm
  • Resolution: 1 mm
  • Aperture angle of sonic cone: ±16°
  • 1 switching output, PNP/NPN
  • 1 analog output: 4-20 mA / 0-10 V
  • Additional switching output, PNP/NPN, NO/NC programmable
  • Transmission of process value and parametrization via IO-link
  • ATEX II 3 G approval for gases, vapors, dust
  • Group IIC, Zone 2 for gases and vapors
  • Group IIIC, Zone 22 for dust
  • SC-M12/3GD safety clips included to prevent inadvertent disconnection of energized cable


Product

Manufacturer Material ID -
RU130U-EM30E-LIU2PN8X2T-H1151/3GD
Net Weight -
0.16kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-25 Degrees celsius
Construction type housing -
Cylinder, screw-thread
Diameter sensor -
30 Millimetre
Explosion safety category for dust -
ATEX dust-ex-protection, Cat. 3D
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Housing material -
Stainless steel
Length of sensor -
89 Millimetre
Material active area of sensor -
Plastic
Measuring range length -
150 Millimetre
No load current -
50 Milliampere
Relative linearity deflection -
0.5 Percentage
Relative repeat accuracy -
0.15 Percentage
Setting procedure -
Manual adjustment
Standard for interfaces -
Other
Supply voltage -
15 Volt
Switching frequency -
6.9 Hertz
Type of analogy output -
4 mA ... 20 mA
Type of electric connection -
Plug-in connection
Type of switch function -
Programmable/configurable
Type of switching output -
PNP/NPN
Turck Banner

Availability On Request

£715.84
