1610069

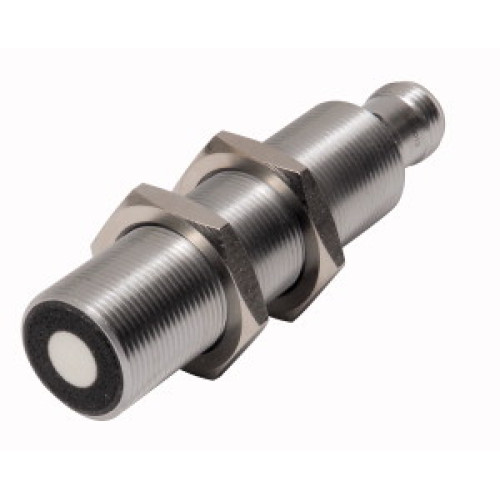

Ultrasonic Sensor, Diffuse Mode Sensor

Manufacturer's No: RU40U-M18E-LI8X2-H1151     Manufacturer: Turck Banner
Ultrasonic Sensor, Diffuse Mode Sensor

Availability On Request

£223.17
  • Type: Ultrasonic Sensor, Diffuse Mode Sensor
  • Operating Voltage: 15-30 VDC
  • Max. Range: 400 mm
  • Smooth sonic transducer face
  • Housing: Cylindrical M18, potted
  • Connection: M12 x 1 male
  • Teach range adjustable via adapter
  • Temperature compensation
  • Blind Zone: 2.5 cm
  • Range: 40 cm

Read more

  • Resolution: 0.5 mm
  • Aperture Angle of Sonic Cone: ±15°
  • Output: Analog 4-20 mA, additional switching output PNP


Product

Manufacturer Material ID -
RU40U-M18E-LI8X2-H1151
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-25 Degrees celsius
Construction type housing -
Cylinder, screw-thread
Diameter sensor -
18 Millimetre
Housing material -
Other
Length of sensor -
75 Millimetre
Material active area of sensor -
Plastic
Measuring range length -
25 Millimetre
No load current -
50 Milliampere
Relative linearity deflection -
0.5 Percentage
Relative repeat accuracy -
0.15 Percentage
Supply voltage -
15 Volt
Switching frequency -
10.4 Hertz
Type of analogy output -
4 mA ... 20 mA
Type of electric connection -
Plug-in connection
Type of switching output -
Other
Turck Banner

Availability On Request

£223.17
