100000746

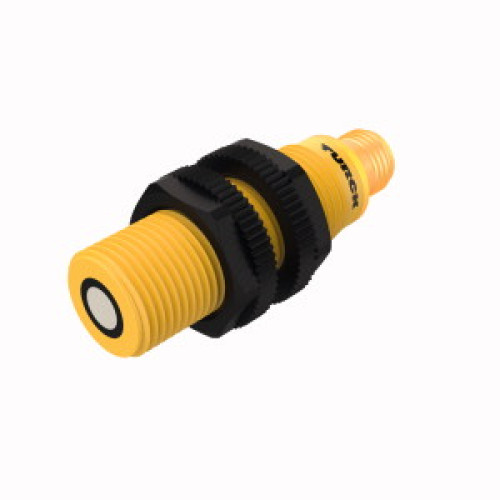

Ultrasonic Sensor, Diffuse Mode Sensor

Manufacturer's No: RU50U-S18-AP8X-H1141     Manufacturer: Turck Banner
Ultrasonic Sensor, Diffuse Mode Sensor

Availability On Request

£127.58
  • Type: Ultrasonic Sensor, Diffuse Mode
  • Operating Voltage: 15-30 VDC
  • Max. Range: 500 mm
  • Smooth sonic transducer face
  • Housing: Cylindrical S18, potted
  • Connection: M12 x 1 male connector
  • Teach range adjustable via adapter
  • Temperature compensation
  • Blind Zone: 5 cm
  • Range: 50 cm

Read more

  • Aperture Angle of Sonic Cone: ±20°
  • Output: PNP switching, NO contact
  • Switching Range Adjustable


Product

Manufacturer Material ID -
RU50U-S18-AP8X-H1141
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
DE
UNSPSC -
39121402

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cylinder, screw-thread
Diameter sensor -
18 Millimetre
Housing material -
Plastic
Length of sensor -
62 Millimetre
Material active area of sensor -
Plastic
Measuring range length -
50 Millimetre
No load current -
50 Milliampere
Relative linearity deflection -
0.5 Percentage
Relative repeat accuracy -
0.15 Percentage
Setting procedure -
Other
Supply voltage -
15 Volt
Switching frequency -
9.6 Hertz
Type of electric connection -
Plug-in connection
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP
Turck Banner

Availability On Request

£127.58
