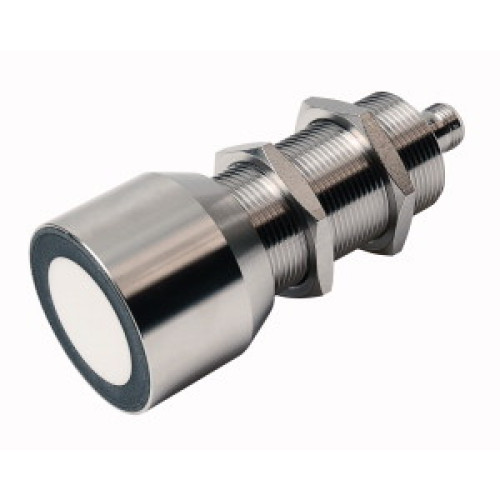

Ultrasonic Sensor, Diffuse Mode Sensor

Manufacturer's No: RU600U-M30M-2UP8X2-H1151     Manufacturer: Turck Banner
Ultrasonic Sensor, Diffuse Mode Sensor

Availability On Request

£461.26
  • Type: Ultrasonic Sensor
  • Mode: Diffuse Mode
  • Operating Voltage: 15-30 VDC
  • Max. Range: 6000 mm
  • Smooth sonic transducer face
  • Housing: Cylindrical M30, potted
  • Connection: M12 x 1 male
  • Measuring Range adjustable via Easy-Teach
  • Temperature Compensation
  • Blind Zone: 60 cm

Read more

  • Range: 600 cm
  • Resolution: 1 mm
  • Aperture Angle of Sonic Cone: ±15°
  • Switching Outputs: 2 x PNP, NO/NC programmable


Product

Manufacturer Material ID -
RU600U-M30M-2UP8X2-H1151
Net Weight -
0.33kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
DE
UNSPSC -
39122216

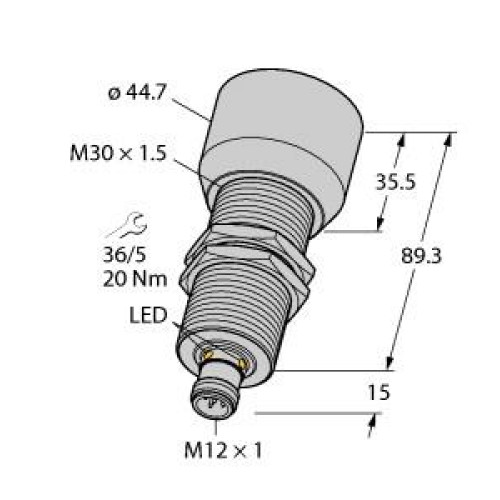

Technical Specification

Ambient temperature -
-25 Degrees celsius
Construction type housing -
Cylinder, screw-thread
Diameter sensor -
44.7 Millimetre
Housing material -
Other
Length of sensor -
104.3 Millimetre
Material active area of sensor -
Plastic
Measuring range length -
600 Millimetre
No load current -
50 Milliampere
Relative linearity deflection -
0.5 Percentage
Relative repeat accuracy -
0.15 Percentage
Setting procedure -
Teach-In
Supply voltage -
15 Volt
Switching frequency -
1.6 Hertz
Type of electric connection -
Plug-in connection
Type of switch function -
Programmable/configurable
Type of switching output -
PNP
