1590912

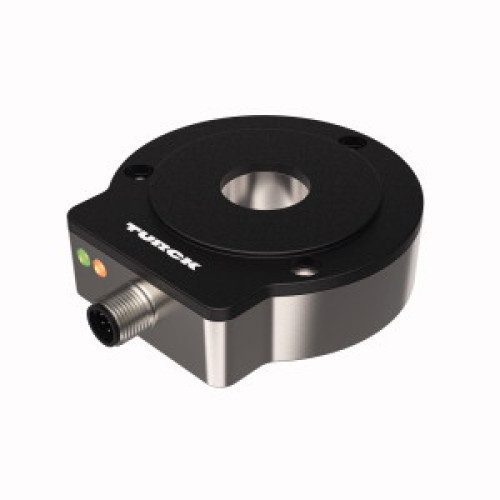

Contactless Encoder with Stainless Steel Housing, Incremental: 1 … 5000 ppr, Pre

Manufacturer's No: RI360P0-EQR24M0-INCRX2-H1181     Manufacturer: Turck Banner
Contactless Encoder with Stainless Steel Housing, Incremental: 1 … 5000 ppr, Pre

Availability On Request

£482.01
  • Contactless Encoder with Stainless Steel Housing
  • Incremental Resolution: 1024 ppr
  • Operating Voltage: 10-30 VDC
  • Premium Line with compact and rugged design
  • Active face made of plastic PA12-GF30
  • Stainless steel V4A (1.4404) housing
  • LED status display
  • Immune to electromagnetic interference
  • Parametrization options: 360, 512, 1000, 1024, 2048, 2500, 3600, 4096
  • Easy-Teach for parameter setting

Read more

  • Free parametrization of pulse number from 1 to 5000 via PACTware™
  • Burst function for absolute angular position output
  • Male M12 x 1, 8-pin connector
  • Push-pull A, B, Z, A (inverse), B (inverse) signal outputs


Product

Manufacturer Material ID -
RI360P0-EQR24M0-INCRX2-H1181
Net Weight -
0.38kg

Additional Product Information

Commodity Code -
90318020000
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Degree of protection (IP rating) -
IP68
Diameter axle -
6 Millimetre
Housing material -
Other
Impulse rate per cycle -
1024
Max. pulses per revolution -
200
Model -
Incremental encoder
Physical measurement principle -
Inductive
Programmable -
Standard for interfaces -
Other
Type of electric connection -
Plug-in connection
Type of shaft encoder -
Hollow shaft
Turck Banner

Availability On Request

£482.01
