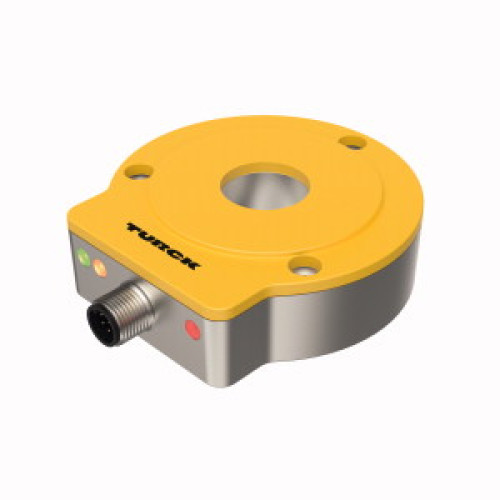

Contactless Encoder, SSI, Premium Line, Operating voltage 15…30 VDC

Manufacturer's No: RI360P0-QR24M0-HESG25X3-H1181     Manufacturer: Turck Banner
Contactless Encoder, SSI, Premium Line, Operating voltage 15…30 VDC

Availability Available to order

£357.23
  • Contactless Encoder
  • Premium Line
  • Operating voltage: 15-30 VDC
  • Compact and rugged housing
  • SSI output, 25-bit Gray-coded
  • SSI clock rate: 62.5 KHz - 1 MHz
  • Single or multiturn capability
  • Status displayed via LED
  • Programmable parameters via PACTware using USB-2-IOL-0002 programming box and adapter cable RKC8.302T-1,5-RSC4T/TX320
  • Default settings: Singleturn Bit 0-15, Multiturn Bit 16-21, Status Bit 22-24

Read more

  • Zero point and sync./async. operating mode adjustable via Easy Teach
  • Compatible with all standard SSI masters
  • Jitter < 5 µs required in sync. mode
  • Immune to electromagnetic interference
  • Male M12 x 1, 8-pin connector
  • Many mounting possibilities


Product

Manufacturer Material ID -
RI360P0-QR24M0-HESG25X3-H1181
Net Weight -
0.34kg

Additional Product Information

Commodity Code -
90318020000
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Degree of protection (IP rating) -
IP68
Diameter axle -
6 Millimetre
Housing material -
Other
Physical measurement principle -
Inductive
Programmable -
Type of electric connection -
Plug-in connection
Type of shaft encoder -
Hollow shaft
