1590866 {T}

Inductive Angle Sensor, With Analog Output, Premium Line, Operating voltage

Manufacturer's No: RI360P1-DSU35-ELIU5X2-H1151     Manufacturer: Turck Banner
Inductive Angle Sensor, With Analog Output, Premium Line, Operating voltage

Availability Available to order

£308.64
  • Inductive Angle Sensor
  • Analog Output
  • Premium Line
  • Operating Voltage: 15-30 VDC
  • Detecting angular positions from 0° to 360°

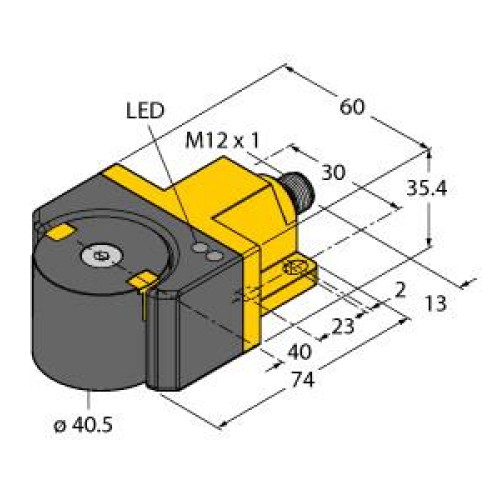

  • Rectangular housing DSU35 made of Plastic (PP-GF30-VO)
  • P1-Ri-DSU35 positioning element included
  • Measuring range displayed via LED
  • Programmable measuring range
  • Immune to electromagnetic interference

Read more

  • Resolution: 12-bit
  • Output: 0-10 V and 4-20 mA
  • Connector: Male M12 x 1, 5-pin


Product

Manufacturer Material ID -
RI360P1-DSU35-ELIU5X2-H1151
Net Weight -
0.14kg

Additional Product Information

Commodity Code -
90318020000
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Degree of protection (IP rating) -
IP68
Housing material -
Plastic
Model -
Other
Physical measurement principle -
Inductive
Programmable -
Standard for interfaces -
Analogue
Type of electric connection -
Plug-in connection
Type of shaft encoder -
Without integral bearing
Turck Banner

Availability Available to order

£308.64
