42140 {B}

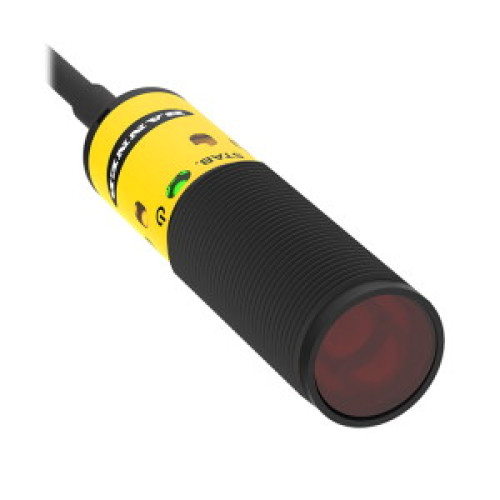

S18-2 Series: Polarized Retroreflective, Range: 6 m, Input: 10-30 V dc, Outputs: complementary NPN, 2 m 4-conductor PVC Cable

Manufacturer's No: S18-2VNLP-2M     Manufacturer: Turck Banner
S18-2 Series: Polarized Retroreflective, Range: 6 m, Input: 10-30 V dc, Outputs: complementary NPN, 2 m 4-conductor PVC Cable

Availability Available to order

£76.72
  • Photoelectric sensor with retroreflective design and polarizing filter
  • Operating voltage: 10-30 VDC
  • Maximum range: 6000 mm
  • Cable length: 2 m
  • Protection class: IP67
  • Ambient temperature range: -40 to +70 °C
  • Features visible red LED light
  • NPN switching output with changeover functionality


Product

Manufacturer Material ID -
S18-2VNLP-2M
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Degree of protection (IP rating) -
IP67

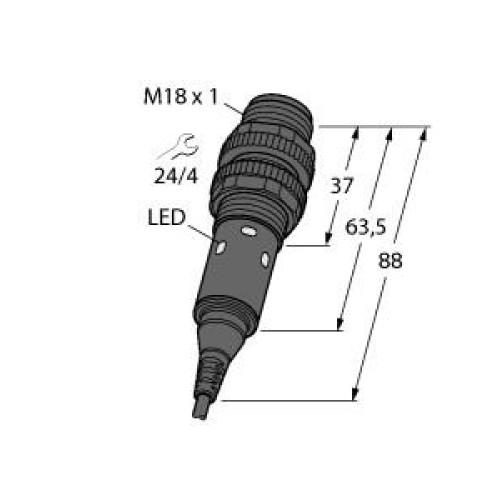

Diameter sensor -
18 Millimetre
Housing material -
Plastic
Length of sensor -
88 Millimetre
Max. switching distance -
6000 Millimetre
Rated switching distance -
6000 Millimetre
Reaction time -
1.5 Millisecond
Type of electric connection -
Cable
Type of light -
Polarized red light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
NPN
Wavelength of the sensor -
624 Nanometre
Turck Banner

Availability Available to order

£76.72
