35147 {B}

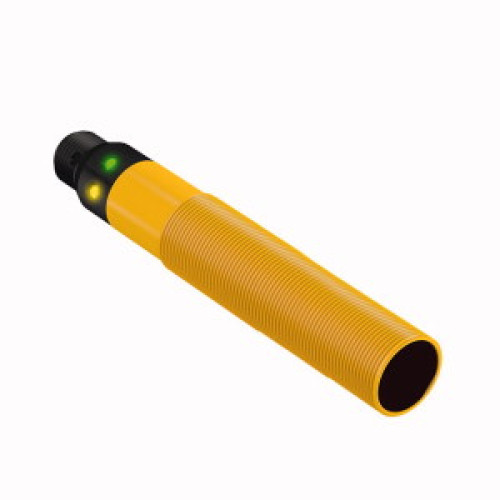

EZ-BEAM S18 Series: Diffuse, Range: 300, Input: 20-250 V ac, Output: SPST Solid-State Light Operate, 4-pin Micro Integral QD

Manufacturer's No: S18AW3DLQ1     Manufacturer: Turck Banner
EZ-BEAM S18 Series: Diffuse, Range: 300, Input: 20-250 V ac, Output: SPST Solid-State Light Operate, 4-pin Micro Integral QD

Availability Available to order

£97.88
  • Photoelectric Sensor
  • Diffuse Mode Sensor
  • Operating Voltage: 20-250 VAC
  • Maximum Range: 300 mm
  • Connector: M12 × 1 male
  • Micro (AC), 4-pin
  • Protection Classes: IP67/IP69K
  • Ambient Temperature: -40 to +70 °C
  • Selectable light/dark operation
  • Light operation with alarm function


Product

Manufacturer Material ID -
S18AW3DLQ1
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Degree of protection (IP rating) -
IP67
Diameter sensor -
18 Millimetre
Housing material -
Plastic
Length of sensor -
78.7 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
300 Millimetre
Reaction time -
16 Millisecond
Sensing mode -
Light switching
Setting procedure -
Other
Switching frequency -
40 Hertz
Type of electric connection -
Connector 1/2 inch
Type of light -
Infrared light
Type of switch function -
Other
Type of switching output -
Relay contact
Wavelength of the sensor -
880 Nanometre
Turck Banner

Availability Available to order

£97.88
