3030884

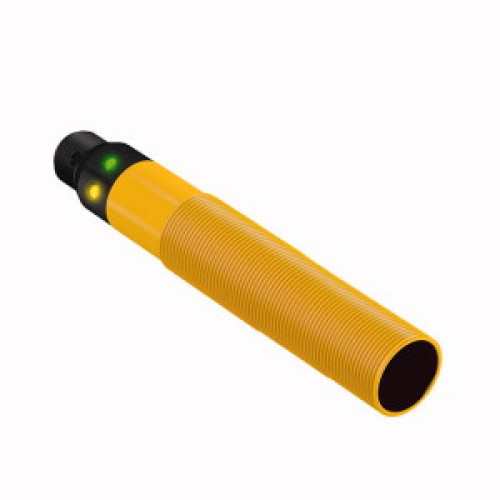

EZ-BEAM S18 Series: Fixed Field, Range: 100, Input: 10-30 V dc, Output: Complementary PNP, 4-pin M12 Integral QD

Manufacturer's No: S18SP6FF100Q     Manufacturer: Turck Banner
EZ-BEAM S18 Series: Fixed Field, Range: 100, Input: 10-30 V dc, Output: Complementary PNP, 4-pin M12 Integral QD

Availability On Request

POA
  • Photoelectric sensor in diffuse mode
  • Features fixed-field background suppression
  • Operating voltage: 10-30 VDC
  • Maximum range: 100 mm
  • Connector: M12 × 1 male, 4-pin
  • Protection classes: IP67/IP69K
  • Ambient temperature range: -40 °C to +70 °C


Product

Manufacturer Material ID -
S18SP6FF100Q
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Adjustment range -
0 Millimetre
Ambient temperature -
-40 Degrees celsius
Degree of protection (IP rating) -
IP67

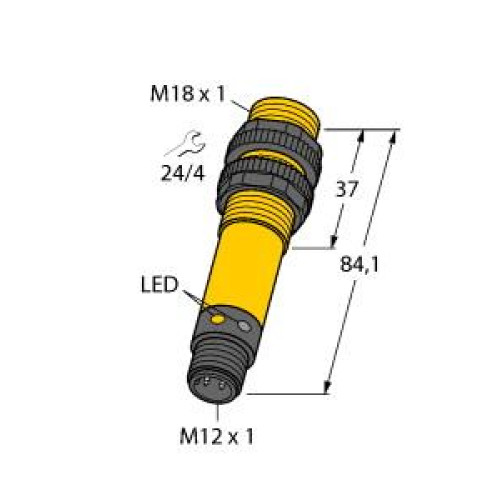

Diameter sensor -
18 Millimetre
Housing material -
Plastic
Length of sensor -
84.1 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
100 Millimetre
Rated switching distance -
100 Millimetre
Reaction time -
3 Millisecond
Setting procedure -
Other
Switching frequency -
160 Hertz
Type of electric connection -
Connector M12
Type of light -
Infrared light
Type of switch function -
Programmable/configurable
Type of switching output -
PNP
Wavelength of the sensor -
880 Nanometre
Turck Banner
