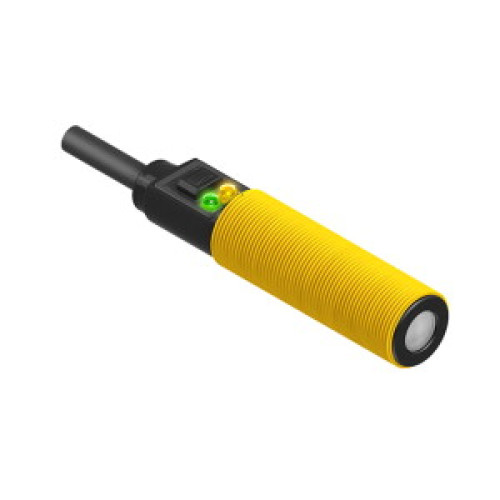

Discrete S18U Straight Series: Proximity Mode, Range: 30-300, Input: 10-30 V dc, Output: Bipolar: 1 PNP 1 NPN, 2 m (6.5 ft) Cable

Manufacturer's No: S18UBA     Manufacturer: Turck Banner
Discrete S18U Straight Series: Proximity Mode, Range: 30-300, Input: 10-30 V dc, Output: Bipolar: 1 PNP 1 NPN, 2 m (6.5 ft) Cable

Availability Available to order

£291.21
  • Type: Ultrasonic Sensor
  • Mode: Diffuse
  • Output: Switching
  • Operating Voltage: 10-30 VDC
  • Max. Range: 300 mm
  • Cable Length: 2 m
  • Compact design
  • Temperature compensation
  • Very small blind zone: 3 cm
  • Switching range adjustable via teach-in

Read more

  • Adjustable to retroreflective mode
  • Range: 30 cm


Product

Manufacturer Material ID -
S18UBA
Net Weight -
0.19kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius

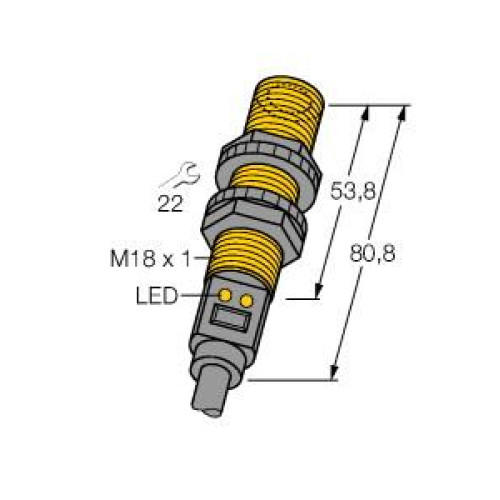

Diameter sensor -
18 Millimetre
Housing material -
Plastic
Length of sensor -
80.8 Millimetre
Material active area of sensor -
Plastic
Material of cable sheath -
Polyvinyl chloride (PVC)
Measuring range length -
30 Millimetre
No load current -
100 Milliampere
Supply voltage -
10 Volt
Switching frequency -
100 Hertz
Type of electric connection -
Cable
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Turck Banner

Availability Available to order

£291.21
