02715 {B}

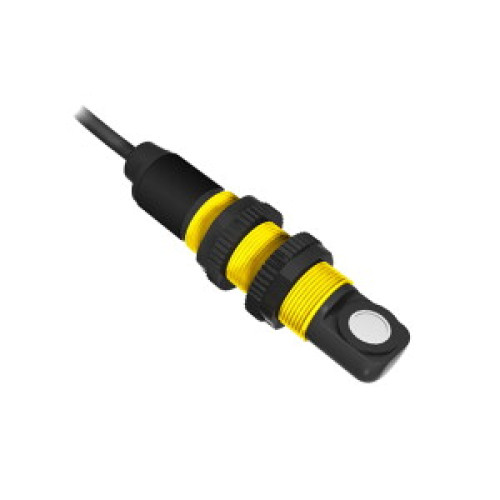

Discrete S18U Right-Angle Series: Proximity Mode, Range: 30-300, Input: 10-30 V dc, Output: Bipolar: 1 PNP 1 NPN, 5-pin M12 Integr

Manufacturer's No: S18UBARQ     Manufacturer: Turck Banner
Discrete S18U Right-Angle Series: Proximity Mode, Range: 30-300, Input: 10-30 V dc, Output: Bipolar: 1 PNP 1 NPN, 5-pin M12 Integral QD

Availability Available to order

£306.26
  • Type: Ultrasonic Sensor
  • Mode: Diffuse mode with switching output
  • Operating Voltage: 10-30 VDC
  • Max. Range: 300 mm
  • Compact design with male M12 x 1 connection
  • Temperature compensation included
  • Very small blind zone of 3 cm
  • Switching range adjustable via teach-in
  • Adjustable to retroreflective mode
  • Range: 30 cm


Product

Manufacturer Material ID -
S18UBARQ
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Diameter sensor -
18 Millimetre
Housing material -
Plastic

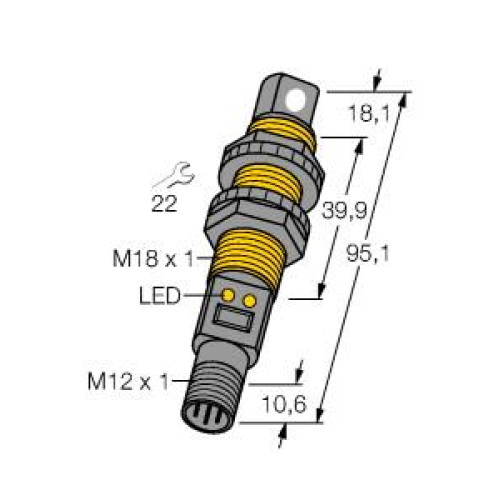

Length of sensor -
95.1 Millimetre
Material active area of sensor -
Plastic
Material of cable sheath -
Polyvinyl chloride (PVC)
Measuring range length -
30 Millimetre
No load current -
100 Milliampere
Supply voltage -
10 Volt
Switching frequency -
100 Hertz
Type of electric connection -
Plug-in connection
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Turck Banner

Availability Available to order

£306.26
