3002708

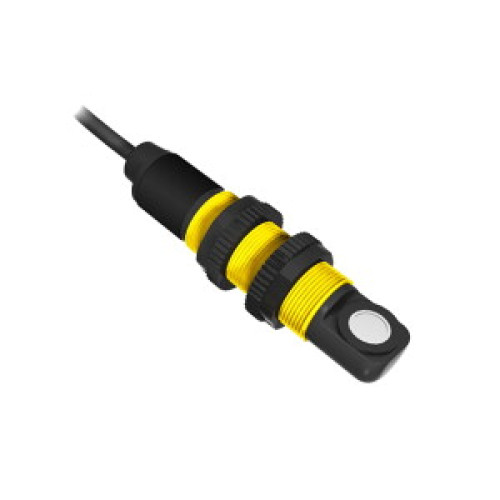

Analog S18U Right-Angle Series: Proximity Mode, Range: 30-300, Input: 10-30 V dc, Outputs: Analog 4-20 mA, 2 m (6.5 ft) Cable

Manufacturer's No: S18UIAR     Manufacturer: Turck Banner
Analog S18U Right-Angle Series: Proximity Mode, Range: 30-300, Input: 10-30 V dc, Outputs: Analog 4-20 mA, 2 m (6.5 ft) Cable

Availability On Request

£375.65
  • Ultrasonic sensor in diffuse mode
  • Analog output
  • Operating voltage: 10-30 VDC
  • Max. range: 300 mm
  • Compact design
  • Cable length: 2 m
  • Temperature compensation
  • Very small blind zone: 3 cm
  • Measuring range adjustable via teach-in
  • Range: 30 cm


Product

Manufacturer Material ID -
S18UIAR
Net Weight -
0.19kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Diameter sensor -
18 Millimetre
Housing material -
Plastic
Length of sensor -
85.1 Millimetre
Material active area of sensor -
Plastic
Material of cable sheath -
Polyvinyl chloride (PVC)
Measuring range length -
30 Millimetre
No load current -
100 Milliampere
Supply voltage -
10 Volt
Type of analogy output -
4 mA ... 20 mA
Type of electric connection -
Cable
Type of switching output -
Other
