2CDS271001R0131

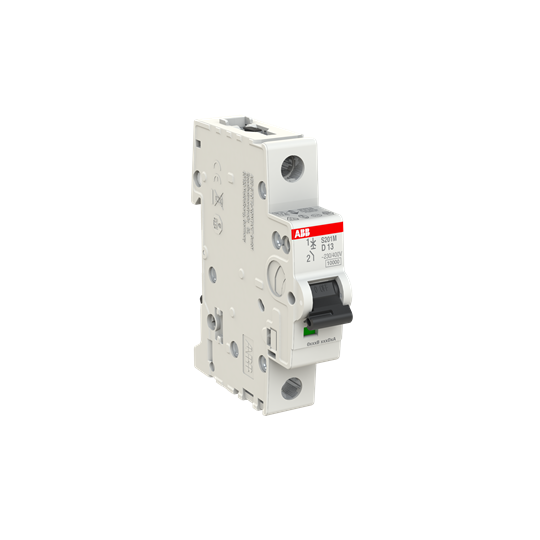

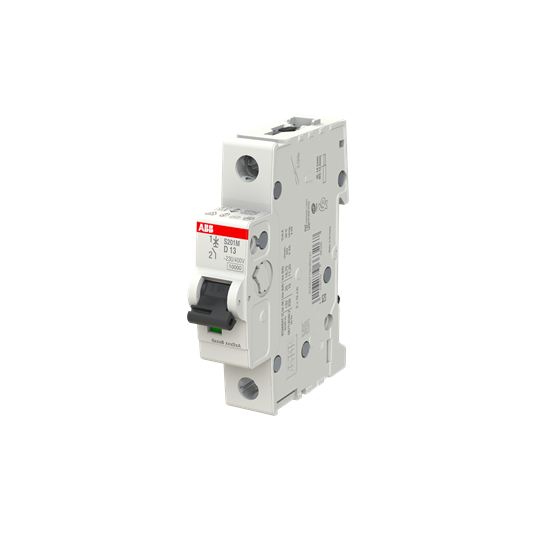

S201M-D13 Miniature Circuit Breaker - 1P - D - 13 A

Manufacturer's No: S201M-D13     Manufacturer: ABB
S201M-D13 Miniature Circuit Breaker - 1P - D - 13 A

Availability Back Order

£25.51
  • Miniature Circuit Breaker model: S201M-D13
  • Configuration: 1P (single pole)
  • Rated current: 13 A
  • Tripping mechanisms: delayed thermal for overload protection, electromechanic for short circuit protection
  • Characteristics available: B, C, D, K, Z
  • Breaking capacities: up to 10 kA at 230/400 V AC
  • Rated currents available: up to 63 A
  • Compliance with standards: IEC/EN 60898-1 and IEC/EN 60947-2
  • Suitable for residential, commercial, and industrial applications
  • Option to mount bottom-fitting auxiliary contact to save 50% space


Product

Manufacturer Material ID -
S201M-D13
Net Weight -
0.13kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Built-in depth -
69 Millimetre
Release characteristic -
D
Degree of protection (IP) -
IP20
Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Connectable conductor cross section multi-wired -
0.75 Square millimetre
Connectable conductor cross section solid-core -
0.75 Square millimetre
Current limiting class -
3
Degree of protection (IP rating) -
IP20
Frequency -
50 Hertz
Number of poles (total) -
1
Number of protected poles -
1
Over voltage category -
3
Pollution degree -
3
Power loss -
2.2 Watt
Rated current -
13 Ampere
Rated impulse-withstand voltage (Uimp) -
4 Kilovolt
Rated insulation voltage Ui -
440 Volt
Rated short-circuit breaking capacity Icn EN 60898 at 230 V -
10 kiloampere
Rated short-circuit breaking capacity Icn EN 60898 at 400 V -
10 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V -
15 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V -
15 kiloampere
Rated voltage -
230 Volt
Recess depth -
69 Millimetre
Tripping characteristic (type/curve) -
D
Voltage type -
Other
Width in number of modular spacings -
1
