63000301

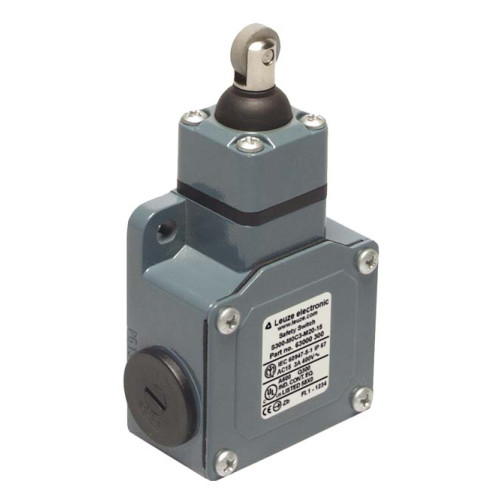

The Safety position switch from . Contact allocation: 2NC + 1NO, Slow-action contact; Cable entry: 3 Piece(s), M20 x 1.5; Connecti

Manufacturer's No: S300-M13C3-M20-15     Manufacturer: Leuze
The Safety position switch from . Contact allocation: 2NC + 1NO, Slow-action contact; Cable entry: 3 Piece(s), M20 x 1.5; Connection: Terminal, 6 -pin; Dimensions: 56 mm x 33 mm x 107 mm; Housing ma

Availability On Request

£42.00
  • Contact Allocation: 2NC + 1NO, Slow-action contact
  • Cable Entry: 3 Pieces, M20 x 1.5
  • Connection: Terminal, 6-pin
  • Dimensions: 56 mm x 33 mm x 107 mm
  • Housing Material: Metal, ZAMAK
  • Switch Type: Interlock device without guard interlocking, ISO 14119
  • Switching Direction: Both sides
  • Approach Actuation Directions: 4 x side (90°), 1 x top
  • Degree of Protection: IP 67
  • Certifications: IMQ, c UL US

Accessories

Others



Product

Manufacturer Material ID -
S300-M13C3-M20-15
Net Weight -
0.34kg

Additional Product Information

Commodity Code -
85369095
Country of Origin -
IT
UNSPSC -
39122200

Technical Specification

Rated operation current Ie at AC-15, 230 V -
- Ampere
Rated operation current Ie at DC-13, 230 V -
- Ampere
Material housing -
UN
Type of interface -
UN
Rated operation current Ie at AC-15, 125 V -
- Ampere
Rated operation current Ie at AC-15, 24 V -
- Ampere
Rated operation current Ie at DC-13, 125 V -
- Ampere
Rated operation current Ie at DC-13, 24 V -
- Ampere
Diameter sensor -
- Millimetre
Number of contacts as normally closed contact -
-
Number of contacts as normally open contact -
-
Number of contacts as change-over contact -
-
Degree of protection (IP) -
IP67
Thumbnail of product picture -
Alignment of the control element -
Other
Ambient temperature during operating -
-25 Degrees celsius
Coating housing -
Powder coated
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Degree of protection (NEMA) -
Other
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height of sensor -
33 Millimetre
Housing material -
Metal
Interface type -
None
Length of sensor -
107 Millimetre
Number of safety auxiliary contacts -
0
Suitable for safety functions -
Switching function -
Slow-action switch
Type of control element -
Roller cam
Type of electric connection -
Cable entry PG
Type of interface for safety communication -
None
Width sensor -
56 Millimetre
Leuze

Availability On Request

£42.00
