63000308

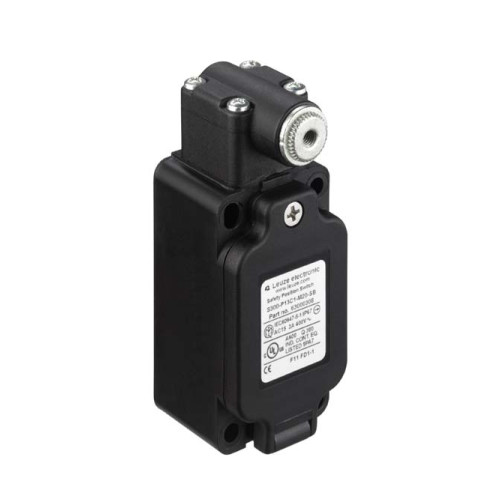

The Safety position switch from . Contact allocation: 2NC + 1NO, Slow-action contact; Cable entry: 1 Piece(s), M20 x 1.5; Connecti

Manufacturer's No: S300-P13C1-M20-SB     Manufacturer: Leuze
The Safety position switch from . Contact allocation: 2NC + 1NO, Slow-action contact; Cable entry: 1 Piece(s), M20 x 1.5; Connection: Terminal, 6 -pin; Dimensions: 40 mm x 39 mm x 97 mm; Housing mat

Availability Back Order

£45.00
  • Contact allocation: 2NC + 1NO, Slow-action contact
  • Housing material: Plastic, Glass fiber reinforced (PPS), self-extinguishing
  • Dimension: 40 mm x 39 mm x 97 mm
  • Switch type: Interlock device without guard interlocking, ISO 14119
  • Degree of protection: IP 67
  • Cable entry: 1 Piece, M20 x 1.5
  • Connection: Terminal, 6-pin
  • Certifications: IMQ, c UL US
  • Switching direction: One side, Both sides
  • Approach actuation directions: 4 x side (90°), 360°

Accessories

Others



Product

Manufacturer Material ID -
S300-P13C1-M20-SB
Net Weight -
0.16kg

Additional Product Information

Commodity Code -
85369095
Country of Origin -
IT
UNSPSC -
39122200

Technical Specification

Rated operation current Ie at AC-15, 230 V -
- Ampere
Rated operation current Ie at DC-13, 230 V -
- Ampere
Material housing -
UN
Type of interface -
UN
Rated operation current Ie at AC-15, 125 V -
- Ampere
Rated operation current Ie at AC-15, 24 V -
- Ampere
Rated operation current Ie at DC-13, 125 V -
- Ampere
Rated operation current Ie at DC-13, 24 V -
- Ampere
Diameter sensor -
- Millimetre
Number of contacts as normally closed contact -
-
Number of contacts as normally open contact -
-
Number of contacts as change-over contact -
-
Degree of protection (IP) -
IP67
Thumbnail of product picture -
Alignment of the control element -
Other
Ambient temperature during operating -
-25 Degrees celsius
Coating housing -
Other
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Degree of protection (NEMA) -
Other
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height of sensor -
39 Millimetre
Housing material -
Plastic
Interface type -
None
Length of sensor -
97 Millimetre
Number of safety auxiliary contacts -
0
Suitable for safety functions -
Switching function -
Slow-action switch
Type of control element -
Other
Type of electric connection -
Cable entry PG
Type of interface for safety communication -
None
Width sensor -
40 Millimetre
Leuze

Availability Back Order

£45.00
