63000405

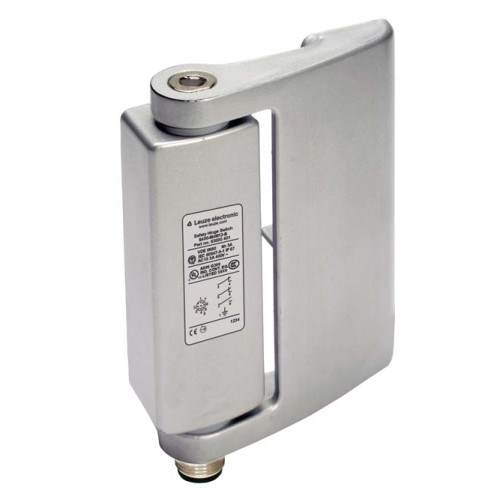

Safety hinge switch Contact allocation: 2NC + 1NO, Snap-action contact; Connection: Connector, M12, Metal, 8 -pin; Dimension: 79 m

Manufacturer's No: S410-M1M12-B     Manufacturer: Leuze
Safety hinge switch Contact allocation: 2NC + 1NO, Snap-action contact; Connection: Connector, M12, Metal, 8 -pin; Dimension: 79 mm x 22.5 mm x 100.6 mm; Housing material: Metal, ZAMAK; Side of cable

Availability Back Order

£143.00
  • Contact Allocation: 2NC + 1NO, Snap-action contact
  • Connection: M12 Metal Connector, 8-pin
  • Dimensions: 79 mm x 22.5 mm x 100.6 mm
  • Housing Material: ZAMAK Metal
  • Cable Entry: From below (left installation)
  • Switch Type: Interlock device without guard interlocking, ISO 14119
  • Degree of Protection: IP 67, IP 69K
  • Certifications: IMQ, c UL US

Accessories

Others



Product

Manufacturer Material ID -
S410-M1M12-B
Net Weight -
0.44kg

Additional Product Information

Commodity Code -
85369095
Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

Number of safety auxiliary contacts -
-
Type of interface -
UN
Number of contacts as normally closed contact -
-
Number of contacts as normally open contact -
-
Number of contacts as change-over contact -
-
Degree of protection (NEMA) -
UN
Material housing -
Metal
Degree of protection (IP) -
IP67
Thumbnail of product picture -
Coating housing -
Powder coated
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height of sensor -
22.5 Millimetre
Housing material -
Metal
Interface type -
None
Length of sensor -
100.6 Millimetre
Rated operation current Ie at AC-15, 125 V -
2 Ampere
Rated operation current Ie at AC-15, 230 V -
2 Ampere
Rated operation current Ie at AC-15, 24 V -
2 Ampere
Rated operation current Ie at DC-13, 125 V -
2 Ampere
Rated operation current Ie at DC-13, 230 V -
2 Ampere
Rated operation current Ie at DC-13, 24 V -
2 Ampere
Suitable for safety functions -
Type of control element -
Other
Type of electric connection -
Connector M12
Type of interface for safety communication -
None
Type of switching contact -
Quick-break switch
Width sensor -
79 Millimetre
Leuze

Availability Back Order

£143.00
