3803226

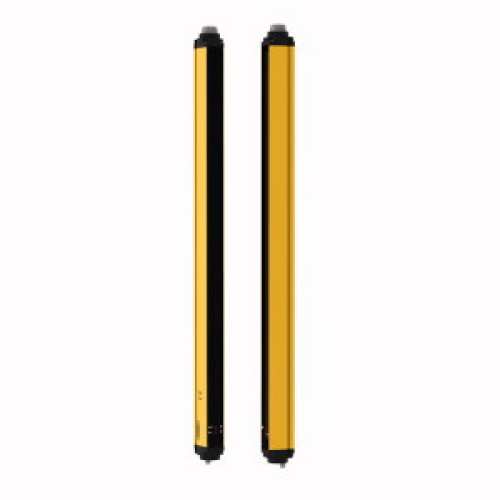

SGS GRIDS, Safety, IP65, 24 V dc +/- 20%, E&R with Muting

Manufacturer's No: SGSMP3-400Q128     Manufacturer: Turck Banner
SGS GRIDS, Safety, IP65, 24 V dc +/- 20%, E&R with Muting

Availability On Request

£1,590.60
  • Safety Light Curtain with Muting Function
  • Emitter and Receiver pair with 3 Beams spaced 380 mm apart
  • Max. Range: 30,000 mm
  • Light Beams: 3 with a Resolution of 400 mm
  • Operating Voltage: 19.2 to 28.8 VDC for Emitter and Receiver, 24 VDC ±20% for overall operation
  • Receiver: M12 male connector with 12-pin and 5-pin (muting sensor)
  • Emitter: M12 male connector with 8-pin
  • Scan Field: 800 mm with Scan Codes for automatic/manual start/restart
  • Integrated Muting and EDM features
  • Safety Integrity Level (SIL): SIL 3 (IEC 61508), Performance Level (PL): PL e (ISO 13849-1)


Product

Manufacturer Material ID -
SGSMP3-400Q128
Net Weight -
4.74kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
HU
UNSPSC -
43211902

Technical Specification

Ambient temperature -
0 Degrees celsius
Height -
906.35 Millimetre
Length -
56.9 Millimetre
Max. output current at protected output -
500 Milliampere
Number of beams -
3
Reaction time -
13 Millisecond
Wavelength of the sensor -
950 Nanometre
Width -
52 Millimetre
Turck Banner

Availability On Request

£1,590.60
