3803229

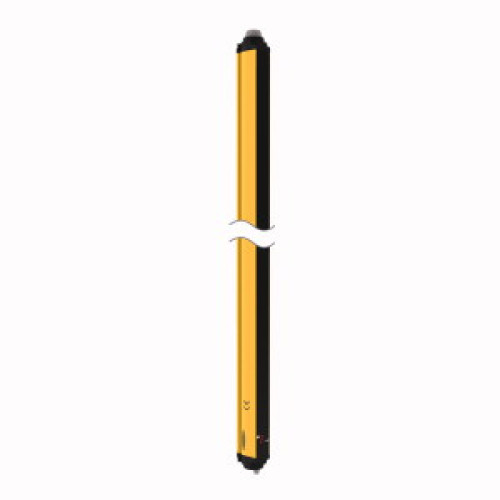

SGS Safety Grid System, Active Transceiver, Beams: 2, Resolution: 500, Range: 0.5-8 m, 8-pin M12 Integral QD, Auto/Manual Start/Re

Manufacturer's No: SGSSA2-500Q8     Manufacturer: Turck Banner
SGS Safety Grid System, Active Transceiver, Beams: 2, Resolution: 500, Range: 0.5-8 m, 8-pin M12 Integral QD, Auto/Manual Start/Restart, EDM, Mounting Hardware Ordered Separately

Availability On Request

£764.00
  • Safety Light Curtain with Active Transceiver
  • 2 Beams with Beam Spacing of 500 mm
  • Operating Voltage: 19.2 to 28.8 VDC
  • Maximum Range: 8000 mm
  • Active Emitter/Receiver Element
  • Light Beams: 2 with Resolution of 500 mm
  • M12 Male Connector with 8-pin QD
  • Scan Codes for Automatic/Manual Start/Restart
  • EDM Functionality
  • Requires Passive Reflector Element SGSB2-500 for 8 m Range

Read more

  • Operating Voltage: 24 VDC ±20%
  • Scan Field: 500 mm
  • Safety Integrity Level (SIL): SIL 3 (IEC 61508)
  • Performance Level (PL): PL e (ISO 13849-1)


Product

Manufacturer Material ID -
SGSSA2-500Q8
Net Weight -
2.05kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
HU
UNSPSC -
43211902

Technical Specification

Ambient temperature -
0 Degrees celsius
Height -
606.35 Millimetre
Length -
56.9 Millimetre
Max. output current at protected output -
500 Milliampere
Number of beams -
2
Reaction time -
11 Millisecond
Wavelength of the sensor -
950 Nanometre
Width -
52 Millimetre
Turck Banner

Availability On Request

£764.00
