3803230

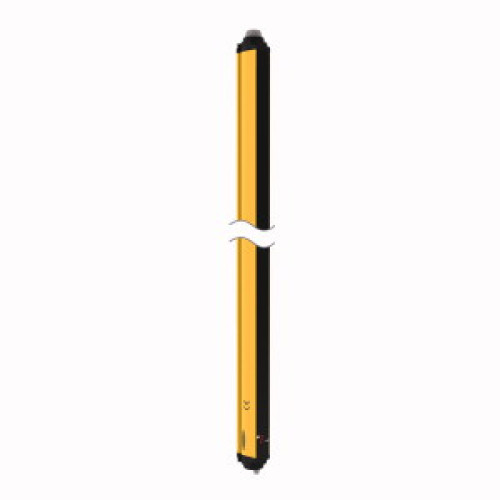

SGS Safety Grid System, Active Transceiver, Beams: 3, Resolution: 400, Range: 0.5-8 m, 8-pin M12 Integral QD, Auto/Manual Start/Re

Manufacturer's No: SGSSA3-400Q8     Manufacturer: Turck Banner
SGS Safety Grid System, Active Transceiver, Beams: 3, Resolution: 400, Range: 0.5-8 m, 8-pin M12 Integral QD, Auto/Manual Start/Restart, EDM, Mounting Hardware Ordered Separately

Availability On Request

£891.93
  • Safety Light Curtain with 3 beams
  • Active Transceiver with beam spacing of 380 mm
  • Max. range of 8000 mm
  • Resolution of 400 mm
  • Operating voltage: 19.2 to 28.8 VDC
  • Requires passive reflector element SGSB3-400 for operation
  • Scan field of 800 mm
  • SIL 3 (IEC 61508) and PL e (ISO 13849-1) compliant


Product

Manufacturer Material ID -
SGSSA3-400Q8
Net Weight -
2.88kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
HU
UNSPSC -
43211902

Technical Specification

Ambient temperature -
0 Degrees celsius
Height -
906.35 Millimetre
Length -
56.9 Millimetre
Max. output current at protected output -
500 Milliampere
Number of beams -
3
Reaction time -
12 Millisecond
Wavelength of the sensor -
950 Nanometre
Width -
52 Millimetre
Turck Banner

Availability On Request

£891.93
