803218 {B}

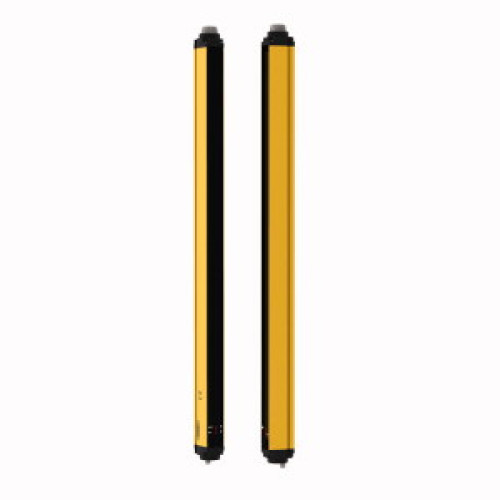

SGS Safety Grid System, Emitter/Receiver Pair, Beams: 3, Resolution: 400, Range: 0.5 to 30 m, 8-pin M12 Integral QD, Scan Codes, A

Manufacturer's No: SGSSP3-400Q88     Manufacturer: Turck Banner
SGS Safety Grid System, Emitter/Receiver Pair, Beams: 3, Resolution: 400, Range: 0.5 to 30 m, 8-pin M12 Integral QD, Scan Codes, Auto/Manual Start/Restart, EDM, Mounting Hardware Ordered Separately

Availability Available to order

£1,499.64
  • Safety Light Curtain with Emitter and Receiver
  • 3 Beams with Beam Spacing of 380 mm
  • Max. Range of 30000 mm
  • Light Beams: 3 with Resolution of 400 mm
  • Emitter: M12 male connector, 8-pin
  • Receiver: M12 male connector, 8-pin
  • Scan Codes: automatic/manual — start/restart, EDM
  • Operating Voltage: 24 VDC ±20%
  • Scan Field: 800 mm
  • Safety Integrity Level (SIL): SIL 3 (IEC 61508)

Read more

  • Performance Level (PL): PL e (ISO 13849-1)


Product

Manufacturer Material ID -
SGSSP3-400Q88
Net Weight -
4.77kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
HU
UNSPSC -
43211902

Technical Specification

Ambient temperature -
0 Degrees celsius
Height -
906.35 Millimetre
Length -
56.9 Millimetre
Max. output current at protected output -
500 Milliampere
Number of beams -
3
Reaction time -
13 Millisecond
Wavelength of the sensor -
950 Nanometre
Width -
52 Millimetre
Turck Banner

Availability Available to order

£1,499.64
