803221 {B}

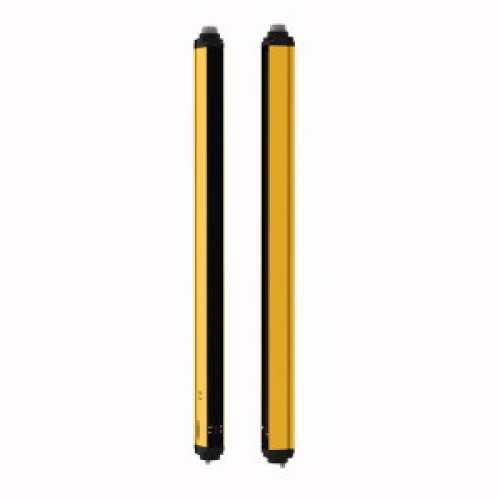

SGS Safety Grid System, Emitter/Receiver Pair, Beams: 2, Resolution: 500, Range: 6 to 60 m, 8-pin M12 Integral QD, Scan Codes, Aut

Manufacturer's No: SGSXP2-500Q88     Manufacturer: Turck Banner
SGS Safety Grid System, Emitter/Receiver Pair, Beams: 2, Resolution: 500, Range: 6 to 60 m, 8-pin M12 Integral QD, Scan Codes, Auto/Manual Start/Restart, EDM, Mounting Hardware Ordered Separately

Availability Available to order

£1,303.80
  • Safety Light Curtain with Emitter and Receiver
  • 2 Beams with Beam Spacing of 500 mm
  • Max. Range of 60000 mm
  • Light Beams: 2 with Resolution of 500 mm
  • Emitter: M12 Male Connector, 8-pin
  • Receiver: M12 Male Connector, 8-pin
  • Scan Codes for automatic/manual start/restart, EDM
  • Operating Voltage: 19.2 to 28.8 VDC
  • Range: 60 m with Scan Field of 500 mm
  • Operating Voltage: 24 VDC ±20%

Read more

  • Safety Integrity Level (SIL) 3 (IEC 61508), Performance Level (PL) e (ISO 13849-1)


Product

Manufacturer Material ID -
SGSXP2-500Q88
Net Weight -
3.29kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
HU
UNSPSC -
43211902

Technical Specification

Ambient temperature -
0 Degrees celsius
Height -
606.35 Millimetre
Length -
56.9 Millimetre
Max. output current at protected output -
500 Milliampere
Number of beams -
2
Reaction time -
12 Millisecond
Wavelength of the sensor -
950 Nanometre
Width -
52 Millimetre
Turck Banner

Availability Available to order

£1,303.80
