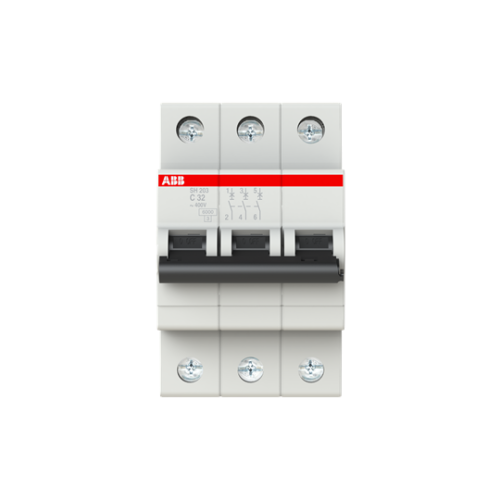

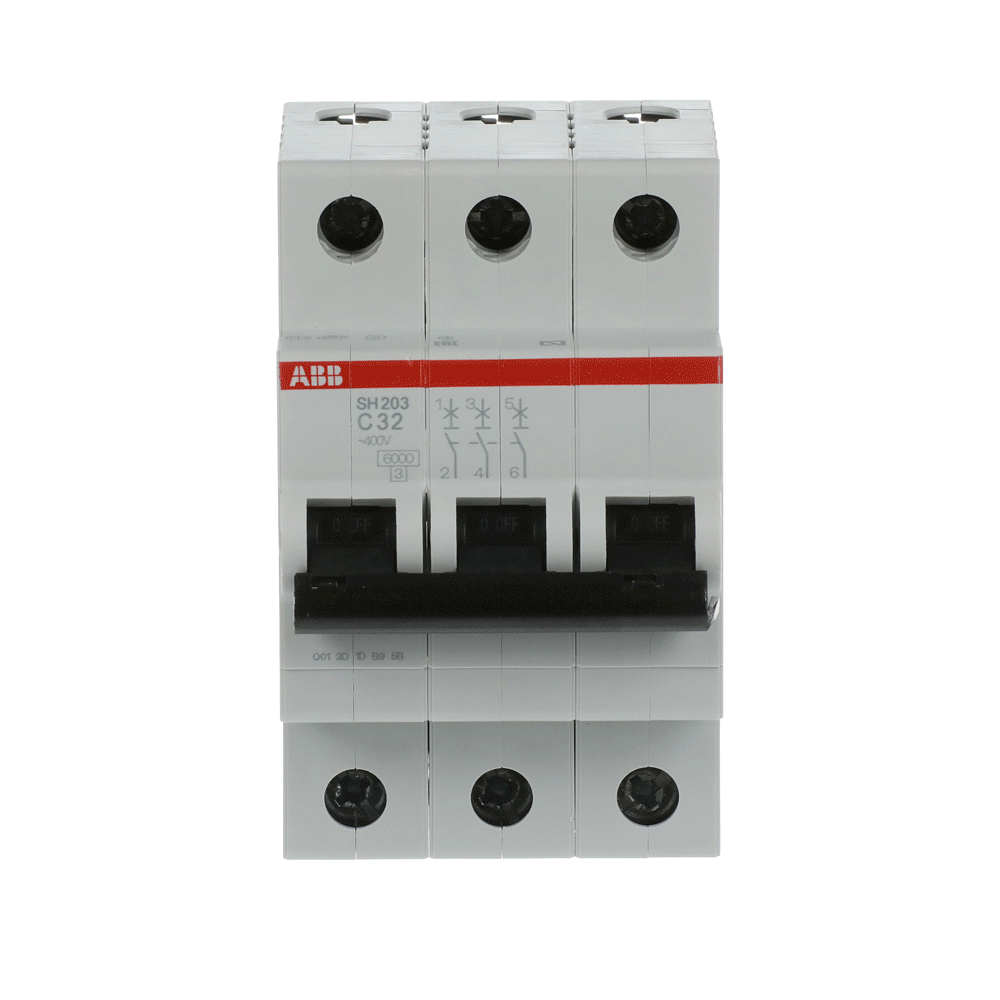

SH203-C32 Miniature Circuit Breaker - 3P - C - 32 A

Manufacturer's No: SH203C32     Manufacturer: ABB
SH203-C32 Miniature Circuit Breaker - 3P - C - 32 A

Availability On Request

£66.68
  • Type: Miniature Circuit Breaker
  • Configuration: 3P (Three Poles)
  • Current Rating: 32 A
  • Tripping Mechanisms: Delayed thermal for overload protection, Electromechanic for short circuit protection
  • Characteristics: B, C
  • Breaking Capacities: Up to 6 kA at 230/400 V AC
  • Rated Currents: Up to 40 A
  • Compliance: IEC/EN 60898-1 for residential applications


Product

Manufacturer Material ID -
SH203C32
Net Weight -
0.38kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Built-in depth -
69 Millimetre
Release characteristic -
C
Degree of protection (IP) -
IP2X
Rated short-circuit breaking capacity Icn EN 60898 at 230 V -
6 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V -
6 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V -
6 kiloampere
Ambient temperature during operating -
-25 Degrees celsius
Connectable conductor cross section multi-wired -
0.75 Square millimetre
Connectable conductor cross section solid-core -
0.75 Square millimetre
Current limiting class -
3
Degree of protection (IP rating) -
IP20
Frequency -
50 Hertz
Number of poles (total) -
3
Number of protected poles -
3
Over voltage category -
3
Pollution degree -
2
Power loss -
11.1 Watt
Rated current -
32 Ampere
Rated impulse-withstand voltage (Uimp) -
4 Kilovolt
Rated insulation voltage Ui -
440 Volt
Rated short-circuit breaking capacity Icn EN 60898 at 400 V -
6 kiloampere
Rated voltage -
400 Volt
Recess depth -
69 Millimetre
Tripping characteristic (type/curve) -
C
Voltage type -
Other
Width in number of modular spacings -
3
