3047875

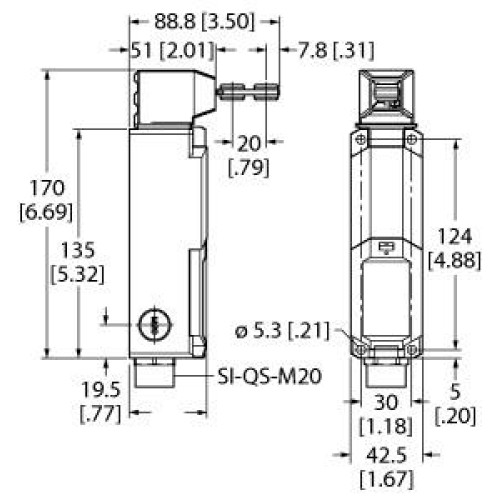

Interlock Body, Spring Locking, Solenoid Voltage: 24 V ac/dc, Contact Configuration: 2 NC, 1 NC/1 NO, Dimensions: 170 x 43 x 45, P

Manufacturer's No: SI-LS42DSH     Manufacturer: Turck Banner
Interlock Body, Spring Locking, Solenoid Voltage: 24 V ac/dc, Contact Configuration: 2 NC, 1 NC/1 NO, Dimensions: 170 x 43 x 45, Plastic Housing

Availability On Request

£313.95
  • Safety Technology Guard Locking Safety Switch
  • Integrated Snap-Lock Function
  • Fulfills IEC 60947-5-1 standard
  • Locking with spring, release with magnet
  • 2 safety outputs with NC contact
  • 2 solenoid position monitoring with NC and NO contact
  • Power supply for solenoid coil
  • SIL 3 (IEC 61508), PL e (ISO 13849-1)


Product

Manufacturer Material ID -
SI-LS42DSH
Net Weight -
0.39kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Degree of protection (IP rating) -
IP65
Housing material -
Plastic
Turck Banner

Availability On Request

£313.95
