3056568

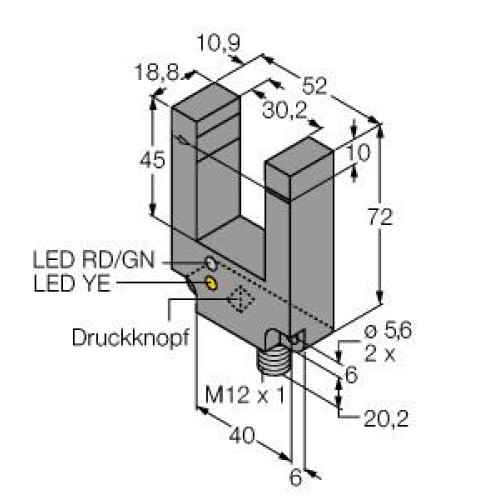

SL Series: Slot Sensor, Slot width: 30, Input: 10-30 V dc, Output: Bipolar: 1 NPN, 1 PNP, M12 Integral QD

Manufacturer's No: SL30VB6VYQ     Manufacturer: Turck Banner
SL Series: Slot Sensor, Slot width: 30, Input: 10-30 V dc, Output: Bipolar: 1 NPN, 1 PNP, M12 Integral QD

Availability On Request

£144.27
  • Type: Photoelectric Sensor, Bifurcated Retroreflective Sensor
  • Operating Voltage: 10-30 VDC
  • Max. Range: 30 mm
  • Slot Width: 30 mm
  • Connector: Male M12 × 1, 5-pin
  • Protection Class: IP67
  • Sensitivity Adjustment: Via potentiometer
  • Switching Output: Bipolar
  • Light or Dark Operation: Adjustable via grey core / PIN 5


Product

Manufacturer Material ID -
SL30VB6VYQ
Net Weight -
0.08kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Construction type housing -
Special construction
Degree of protection (IP rating) -
IP67
Fork width -
30 Millimetre
Height of sensor -
52 Millimetre
Housing material -
Plastic
Length of sensor -
72 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
30 Millimetre
Rated switching distance -
30 Millimetre
Reaction time -
0.3 Millisecond
Type of electric connection -
Connector M12
Type of light -
Polarity free red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Wavelength of the sensor -
680 Nanometre
Width sensor -
18.8 Millimetre
Turck Banner

Availability On Request

£144.27
