804079 {B}

EZ-SCREEN LS BASIC, Pair, Resolution: 23, Range: 8 m (26 ft), Defined Area: 1050 (41.3 in), Housing: Black, Connection: Removable

Manufacturer's No: SLLVP23-1050     Manufacturer: Turck Banner
EZ-SCREEN LS BASIC, Pair, Resolution: 23, Range: 8 m (26 ft), Defined Area: 1050 (41.3 in), Housing: Black, Connection: Removable Disconnect (RD), Mounting Hardware Ordered Separately

Availability Available to order

£1,955.68

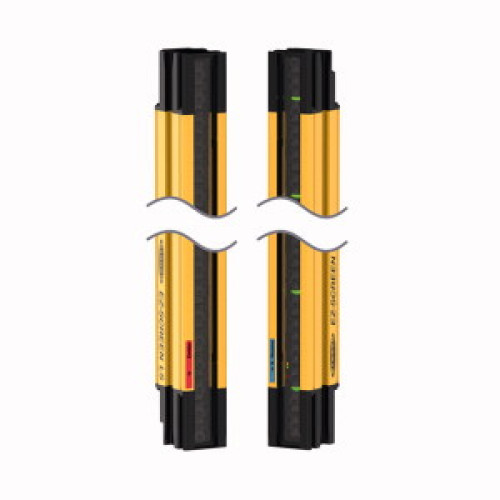

  • Safety Light Curtain, Emitter/Receiver Pair
  • Max. Range: 12000 mm
  • Scan Field Length: 1050 mm
  • Range: 0.1…8 m
  • Resolution: 23 mm
  • Operating Voltage: 24 VDC
  • Rugged Housing, Protection Class IP67
  • Diagnosis Display for Status and Error Indication
  • Optical Alignment Aid, No Blind Zone
  • Safety Light Curtain Type 4 acc. to IEC 61496-1 and 61496-2

Read more

  • Category 4 Ple acc. to EN ISO 13849-1
  • SIL 3 acc. to IEC 61508 SIL 3 and CL3 acc. to IEC 62061
  • Shock and Vibration Resistant acc. to IEC 61496-1


Product

Manufacturer Material ID -
SLLVP23-1050
Net Weight -
5.53kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius

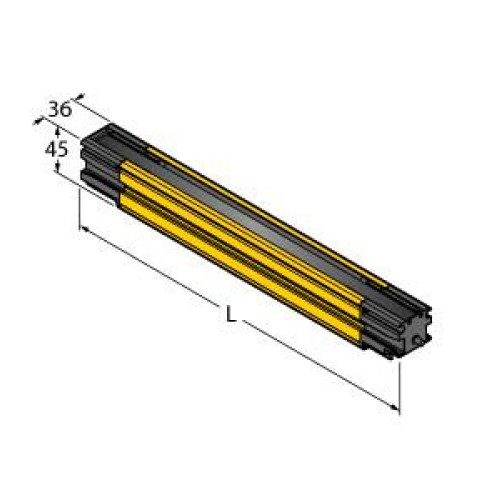

Height of sensor -
1055 Millimetre
Length of sensor -
45 Millimetre
Max. output current at protected output -
500 Milliampere
Number of protected semiconductor outputs -
2
Reaction time -
17.5 Millisecond
Resolution of the light curtain -
23 Millimetre
Safety field height -
1050 Millimetre
Suitable for safety functions -
Type of electric connection -
Flat plug-in connection
Type of switching output of the OSSD -
PNP
Width sensor -
36 Millimetre
Turck Banner

Availability Available to order

£1,955.68
