3804075

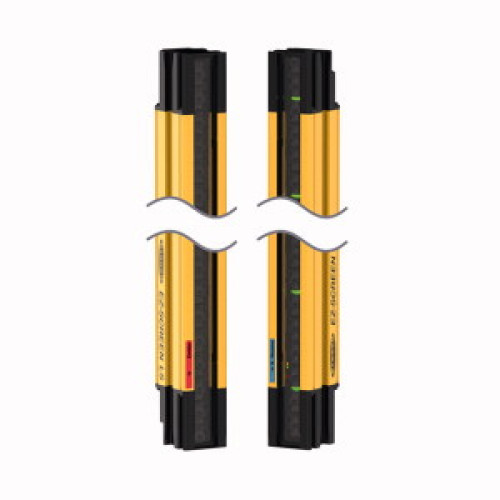

EZ-SCREEN LS BASIC, Pair, Resolution: 23, Range: 8 m (26 ft), Defined Area: 350 (13.8 in), Housing: Black, Connection: Removable D

Manufacturer's No: SLLVP23-350     Manufacturer: Turck Banner
EZ-SCREEN LS BASIC, Pair, Resolution: 23, Range: 8 m (26 ft), Defined Area: 350 (13.8 in), Housing: Black, Connection: Removable Disconnect (RD), Mounting Hardware Ordered Separately

Availability On Request

£891.93
  • Safety Light Curtain, Emitter/Receiver Pair
  • Max. Range: 12000 mm
  • Scan Field Length: 350 mm
  • Range: 0.1 to 8 m, Resolution: 23 mm
  • Operating Voltage: 24 VDC (20.4 to 27.6 VDC)
  • Rugged housing, Protection Class IP67
  • Diagnosis Display for status and error indication
  • Optical alignment aid, No blind zone
  • Safety Type: 4 acc. to IEC 61496-1 and 61496-2
  • Category 4 Ple acc. to EN ISO 13849-1

Read more

  • SIL 3 acc. to IEC 61508 SIL 3 and CL3 acc. to IEC 62061
  • Shock and vibration resistant acc. to IEC 61496-1


Product

Manufacturer Material ID -
SLLVP23-350
Net Weight -
2.48kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius

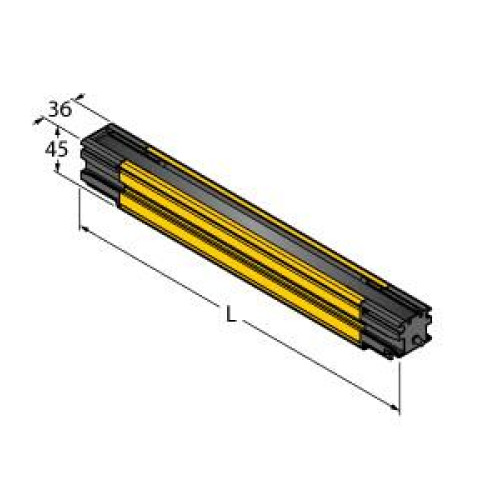

Height of sensor -
355 Millimetre
Length of sensor -
45 Millimetre
Max. output current at protected output -
500 Milliampere
Number of protected semiconductor outputs -
2
Reaction time -
9.1 Millisecond
Resolution of the light curtain -
23 Millimetre
Safety field height -
350 Millimetre
Suitable for safety functions -
Type of electric connection -
Flat plug-in connection
Type of switching output of the OSSD -
PNP
Width sensor -
36 Millimetre
Turck Banner

Availability On Request

£891.93
