804077 {B}

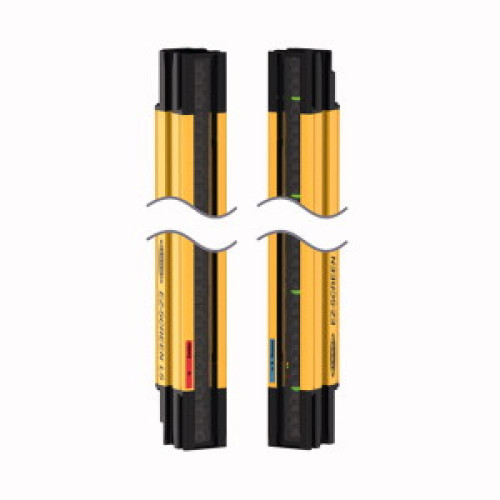

EZ-SCREEN LS BASIC, Pair, Resolution: 23, Range: 8 m (26 ft), Defined Area: 630 (24.8 in), Housing: Black, Connection: Removable D

Manufacturer's No: SLLVP23-630     Manufacturer: Turck Banner
EZ-SCREEN LS BASIC, Pair, Resolution: 23, Range: 8 m (26 ft), Defined Area: 630 (24.8 in), Housing: Black, Connection: Removable Disconnect (RD), Mounting Hardware Ordered Separately

Availability Available to order

£1,433.93
  • Safety Light Curtain Emitter/Receiver Pair
  • Max. Range: 12000 mm
  • Scan Field Length: 630 mm
  • Range: 0.1 to 8 m
  • Resolution: 23 mm
  • Operating Voltage: 24 VDC
  • Protection Class: IP67
  • No Blind Zone
  • Diagnosis Display for Status and Error Indication
  • Optical Alignment Aid

Read more

  • Safety Type: 4 acc. to IEC 61496-1 and 61496-2
  • Category 4 Ple acc. to EN ISO 13849-1
  • SIL 3 acc. to IEC 61508 and CL3 acc. to IEC 62061
  • Shock and Vibration Resistant


Product

Manufacturer Material ID -
SLLVP23-630
Net Weight -
3.68kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius

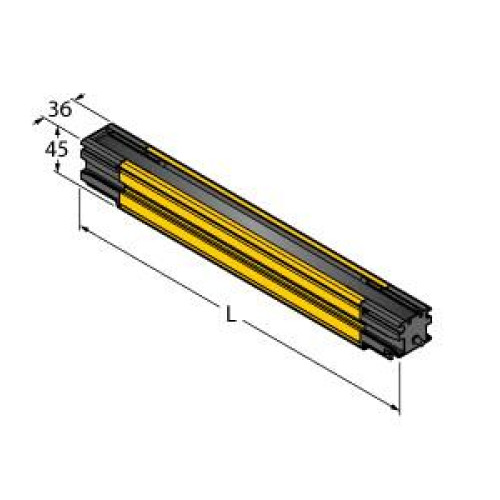

Height of sensor -
635 Millimetre
Length of sensor -
45 Millimetre
Max. output current at protected output -
500 Milliampere
Number of protected semiconductor outputs -
2
Reaction time -
12.5 Millisecond
Resolution of the light curtain -
23 Millimetre
Safety field height -
630 Millimetre
Suitable for safety functions -
Type of electric connection -
Flat plug-in connection
Type of switching output of the OSSD -
PNP
Width sensor -
36 Millimetre
Turck Banner

Availability Available to order

£1,433.93
