3075034

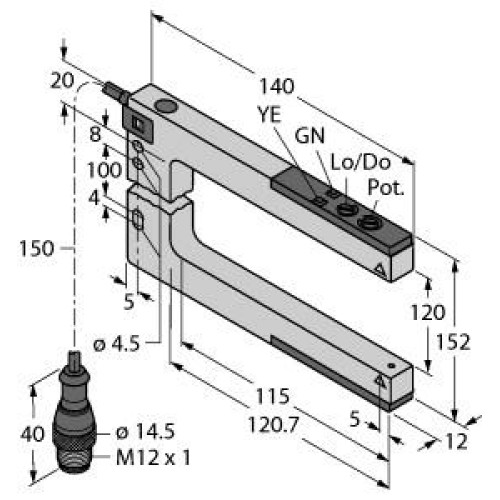

SLM Series: Rugged Nickel-Plated Metal Fixed-Distance Slot Sensor, Slot Width: 120, Input 10-30 V dc, Output: Bipolar: 1 NPN 1 PNP

Manufacturer's No: SLM120B6QPMA     Manufacturer: Turck Banner
SLM Series: Rugged Nickel-Plated Metal Fixed-Distance Slot Sensor, Slot Width: 120, Input 10-30 V dc, Output: Bipolar: 1 NPN 1 PNP, 150 (6 in) M12 PUR Pigtail QD

Availability On Request

£254.06
  • Type: Photoelectric Sensor, Bifurcated Retroreflective Sensor
  • Operating Voltage: 10-30 VDC
  • Max. Range: 120 mm
  • Cable Length: 0.15 m, Male end M12 x 1, PUR, 150 mm
  • Protection Class: IP67
  • Sensitivity Adjustment: Via potentiometer
  • Switching Output: Bipolar
  • Operation: Light or dark operation


Product

Manufacturer Material ID -
SLM120B6QPMA
Net Weight -
0.55kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Special construction
Degree of protection (IP rating) -
IP67
Fork width -
120 Millimetre
Height of sensor -
152 Millimetre
Housing material -
Metal
Length of sensor -
140 Millimetre
Material of cable sheath -
Polyurethane (PUR)
Material of optical surface -
Plastic
Max. switching distance -
120 Millimetre
Rated switching distance -
120 Millimetre
Reaction time -
0.5 Millisecond
Switching frequency -
1000 Hertz
Type of electric connection -
Connector M12
Type of light -
Polarity free red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Wavelength of the sensor -
680 Nanometre
Width sensor -
12 Millimetre
Turck Banner

Availability On Request

£254.06
