3074977

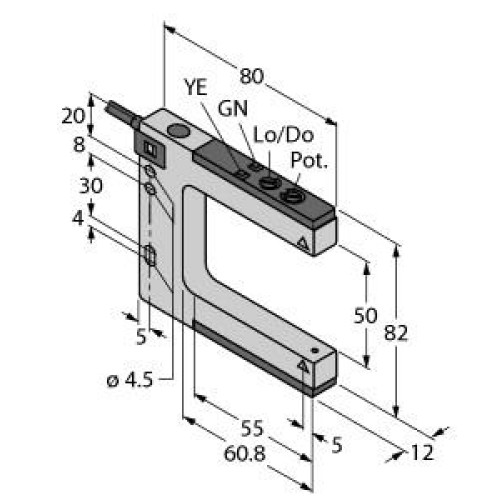

SLM Series: Rugged Nickel-Plated Metal Fixed-Distance Slot Sensor, Slot Width: 50, Input: 10-30 V dc, Output: Bipolar: 1 NPN, 1 PN

Manufacturer's No: SLM50B6     Manufacturer: Turck Banner
SLM Series: Rugged Nickel-Plated Metal Fixed-Distance Slot Sensor, Slot Width: 50, Input: 10-30 V dc, Output: Bipolar: 1 NPN, 1 PNP, 2 m (6.5 ft) Cable

Availability On Request

£179.66
  • Photoelectric Sensor
  • Bifurcated Retroreflective Sensor
  • Operating Voltage: 10-30 VDC
  • Max. Range: 50 mm
  • Cable Length: 2 m, PVC
  • Protection Class: IP67
  • Sensitivity Adjusted via Potentiometer
  • Switching Output: Bipolar, light or dark operation


Product

Manufacturer Material ID -
SLM50B6
Net Weight -
0.25kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Special construction
Degree of protection (IP rating) -
IP67
Fork width -
50 Millimetre
Height of sensor -
82 Millimetre
Housing material -
Metal
Length of sensor -
80 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
50 Millimetre
Rated switching distance -
50 Millimetre
Reaction time -
0.5 Millisecond
Switching frequency -
1000 Hertz
Type of electric connection -
Cable
Type of light -
Polarity free red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Wavelength of the sensor -
680 Nanometre
Width sensor -
12 Millimetre
Turck Banner
